Component Inspection
WARNING: This page is about a different variant/trim than selected.
- Switch "OFF" ignition.
- Disconnect the negative (-) battery cable.
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

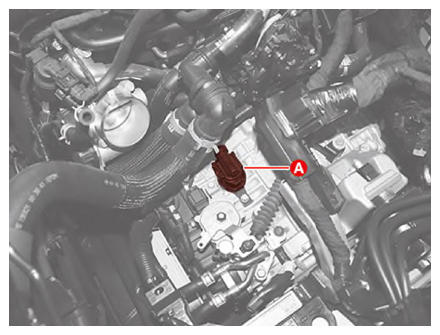

- Disconnect the main connector (A).

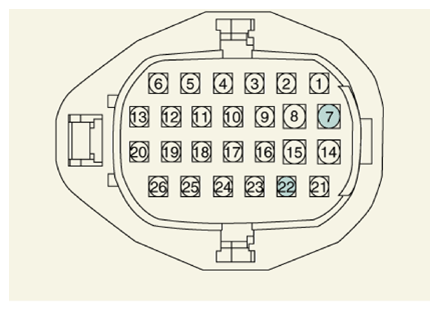

- Measure the resistance between power terminal (7) and signal terminal (22).
Specification: 5.1 ± 0.3 Ω
