Description And Operation: Description
WARNING: This page is about a different variant/trim than selected.

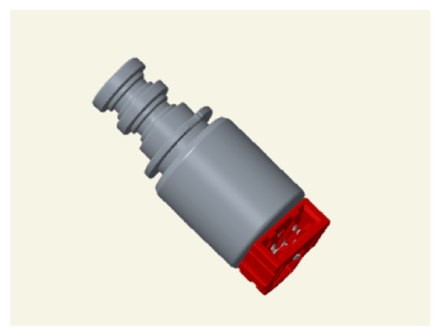

- Line pressure solenoid valve is a Variable Force Solenoid (VFS) type.
- When TCM supplies variable current to solenoid valve, hydraulic pressure is controlled indirectly by solenoid valve.
 Courtesy of KIA MOTORS AMERICA, INC.
|
| |
Solenoid Valve |
| LINE_VFS |
| P |
* |
| R |
* |
| N |
* |
| 1 |
* |
| 2 |
* |
| 3 |
* |
| 4 |
* |
| 5 |
* |
| 6 |
* |
| 7 |
* |
| 8 |
* |
| Remark |
*
: Variable connected |
