Automatic Transaxle Fluid (ATF) Level Check
WARNING: This page is about a different variant/trim than selected.
NOTE:
When checking the ATF level, be careful not to allow foreign substance (like dust) to enter through the filler hole.
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

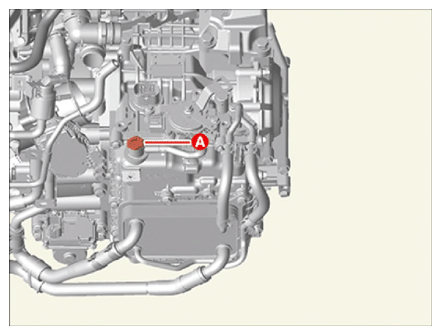

- Add 0.7 L of ATF SP4M-1 through the ATF filler hole after removing the eyebolt (A).
- Start the engine to warm up the ATF.NOTE: Do not step on the brake and accelerator simultaneously to warm up the ATF.
- Check by using KDS that the temperature of the ATF is between 50°C and 60°C.
- Move the shift lever slowly from "P" to "D", then back to "P". Repeat this sequence two times and then move the shift lever to "P" range.NOTE: Pause in each range for more than 2 seconds.
- Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

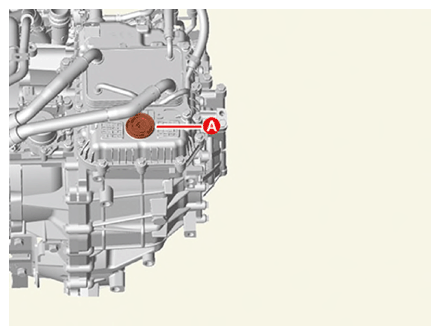

- Remove the ATF level plug (A) from the valve body cover.NOTE: When removing the ATF level plug, keep the vehicle on a level ground.
- Check the ATF level.
Normal: ATF flows out in a thin oil stream.
Excessive: (abnormal): Over 0.9 liters of ATF flows out for 2 minutes.
Insufficient: (abnormal): There is no fluid flow.
NOTE: If the ATF level is too high or low, follow the instructions below.- Excessive: Drain until the ATF flows out in a thin oil stream.
- Insufficient: Add until the ATF flows out in a thin oil stream.

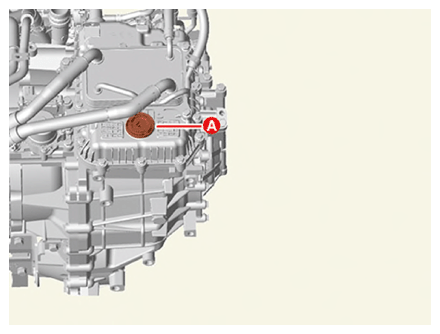

- Install the ATF level plug (A).NOTE: The existing ATF level plug O-ring (A) must be replaced with a new one (do not reuse).
- Lower the vehicle and install the eyebolt (A).
Tightening torque:
4.9 - 5.9 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb.ft)

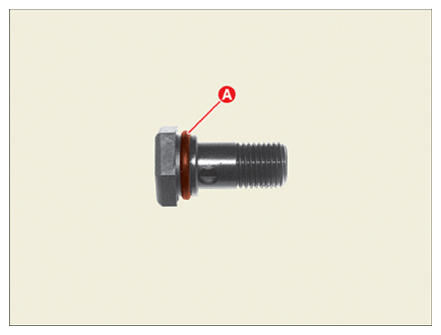

NOTE: The existing eyebolt O-ring (A) must be replaced with a new one (do not reuse). - Install the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Install the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
