Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative (-) battery cable.
Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

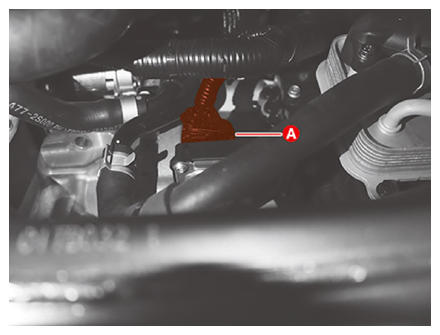

Disconnect the EOP connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

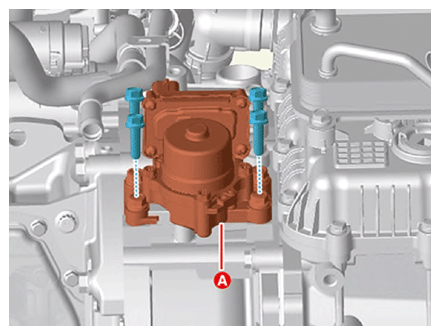

Remove the EOP (A) after removing the bolts.
Tightening torque:

19.6 - 25.5 N.m (2.0 - 2.6 kgf.m, 14.5 - 18.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
