Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Drain the engine coolant.
(Refer to Engine Mechanical System - "COOLANT ")

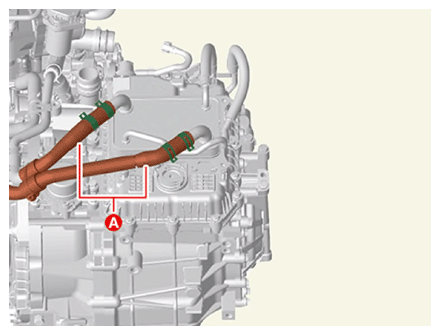

Separate ATF warmer hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: ATF can be reused. Collect it in a clean beaker.

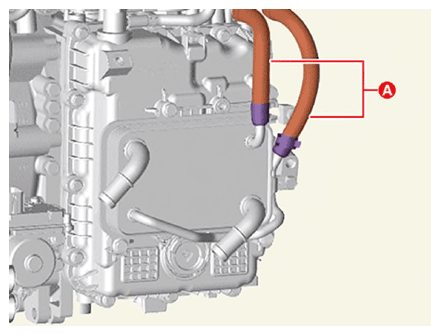

Separate coolant hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

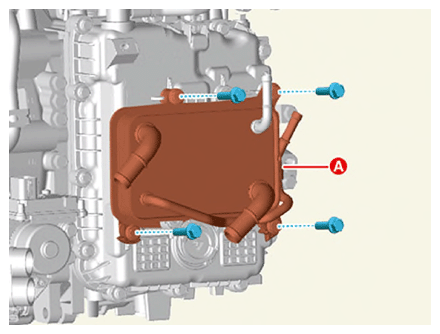

Remove the ATF warmer (A) by removing the bolts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
