Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
- Automatic transaxle is composed of delicate components. Be careful not to cause any damage on the component in the course of assembly and disassembly.
- Maintain clean condition so that foreign substance does not get into the automatic transaxle.
- Use a coated apron, latex gloves, and stainless tray to prevent foreign substance from getting into the automatic transaxle.
- Disconnect the negative (-) battery cable.
- Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
- Drain the engine coolant.
(Refer to Engine Mechanical System - "COOLANT ")

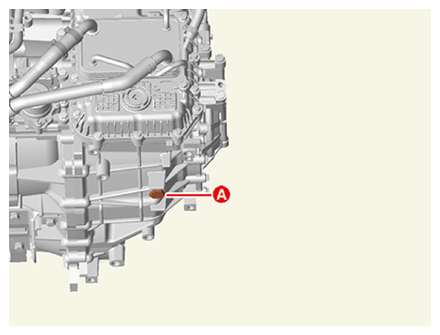

- Remove the ATF drain plug (A), allow the fluid to drain out and then reinstall the drain plug.
Tightening torque:
34.0 - 44.0 N.m (3.5 - 4.5 kgf.m, 25.3 - 32.5 lb.ft)
NOTE:- The existing ATF drain plug gasket must be replaced with a new one (do not reuse).
- Automatic transaxle fluid (ATF) can be reused. Collect it using a clean 10-liter beaker.
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

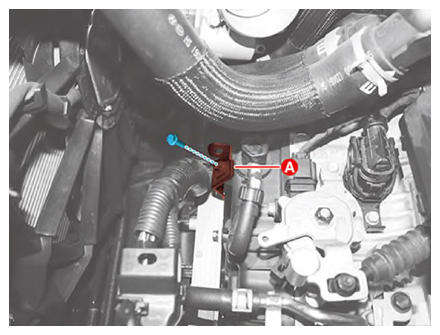

- Remove the wiring bracket (A).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
- Remove the ATF warmer.
(Refer to Hydraulic System - "ATF WARMER ")

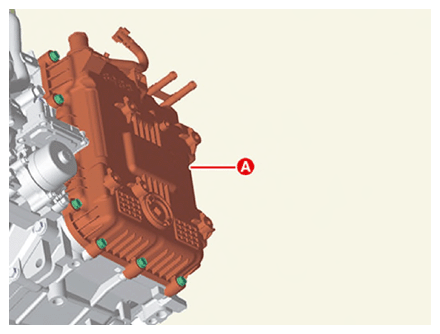

- Remove the valve body cover (A) after removing the bolts.
Tightening torque:
11.8 - 13.7 N.m (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb.ft)
NOTE:- Be careful not to discharge the remaining ATF when removing the valve body cover.

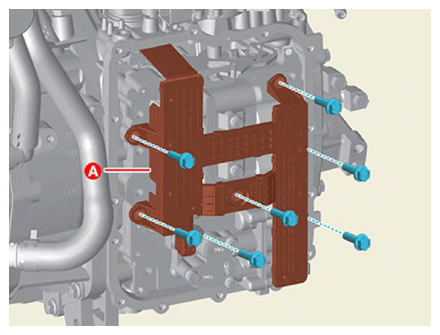

- Separate the E-module (A) after removing the bolts.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

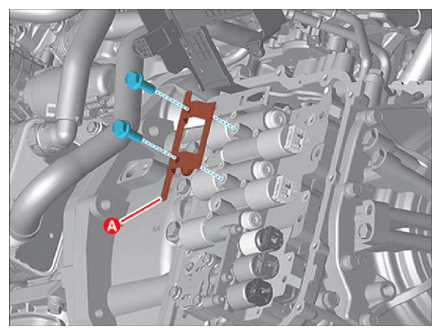

- Remove the support bracket (A) after removing the bolts.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

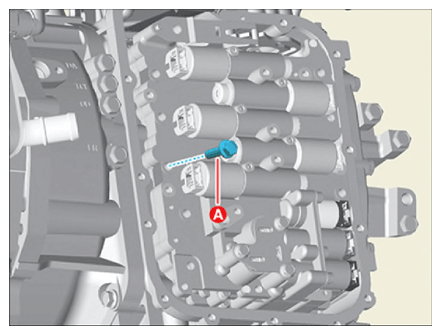

- Remove the valve body mounting bolt (A).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

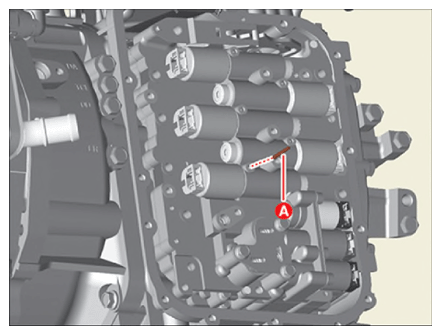

- Remove the roller (A) using a magnet.

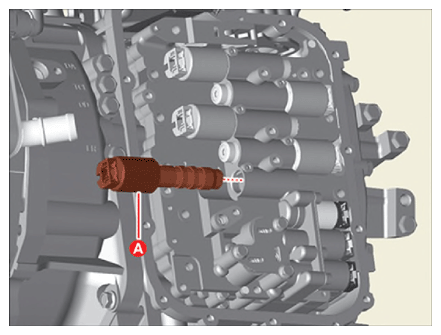

- Remove the 37R clutch control solenoid valve (A).
