Home >> Kia >> 2023 >> Sorento X-Line EX >> Repair and Diagnosis >> External Pages >> Different variant/trim >> Section 24 (Automatic Transaxle System - 2.5 (VIN C) (Except HEV)) >> Components And Components Location >> Component

Components And Components Location: Component

WARNING: This page is about a different variant/trim than selected.

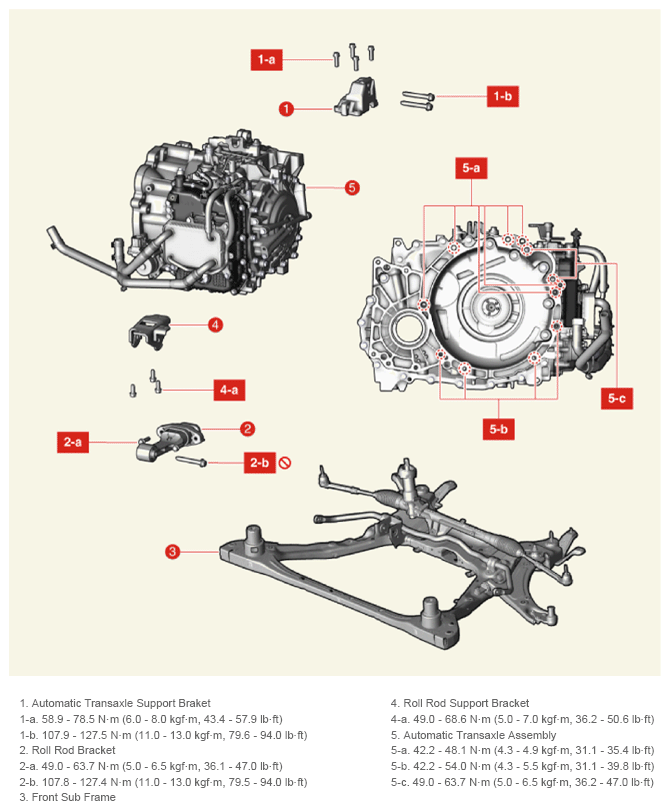

Fig 1: Automatic Transaxle System Components Location With Torque Specification
G13661345Courtesy of KIA MOTORS AMERICA, INC.
