Circuit Inspection
WARNING: This page is about a different variant/trim than selected.
| CAN Communication Line Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
| Connector | Terminal | Connector | Terminal | ||
|

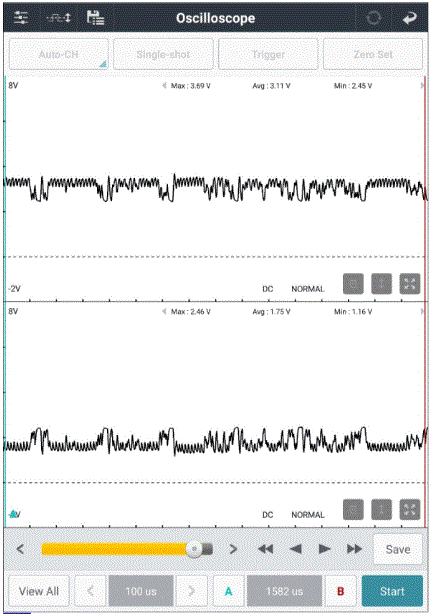

HECU connector (W/O EPB) | 8 (P-CAN high) | Chassis ground | - | Fig.1 |
| HECU connector (W/O EPB) | 7 (P-CAN low) | Chassis ground | - | ||
| HECU connector (with EPB) | 23 (P-CAN high) | Chassis ground | - | Fig. 1 | |
| HECU connector (with EPB) | 22 (P-CAN low) | Chassis ground | - | ||
|
PCM connector | 6 (P-CAN high) | PCM connector | 7 (P-CAN low) | Approx. 60Ω |
| ICU (component side) | 17 (P-CAN high) | ICU (component side) | 18 (P-CAN low) | Approx. 120Ω | |
| HECU connector (W/O EPB) | 8 (P-CAN high) | Chassis ground | - | ∞ (infinity)Ω | |
| HECU connector (W/O EPB) | 7 (P-CAN low) | Chassis ground | - | ∞ (infinity)Ω | |
| HECU connector (with EPB) | 23 (P-CAN high) | Chassis ground | - | ∞ (infinity)Ω | |
| HECU connector (with EPB) | 22 (P-CAN low) | Chassis ground | - | ∞ (infinity)Ω | |
Good
- Go to "Module Circuit Inspection" procedure.
No Good
- Repair open or short in circuit and then go to "Verification of Repair " procedure.
| Module Circuit Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
| Connector | Terminal | Connector | Terminal | ||
|
HECU connector (W/O EPB) | 1, 25, 32 (power) | Chassis ground | - | B+ |
| HECU connector (with EPB) | 1, 30, 37 (power) | Chassis ground | - | B+ | |
|
HECU connector (W/O EPB) | 13, 38 (ground) | Chassis ground | - | Approx. below 1Ω |
| HECU connector (with EPB) | 14, 46 (ground) | Chassis ground | - | Approx. below 1Ω | |
Good
- Go to "Component Inspection " procedure.
- Repair as necessary and then go to "Verification of Repair " procedure.
No Good
- Repair open or short in circuit and then go to "Verification of Repair " procedure.
