Circuit Inspection

WARNING: This page is about a different variant/trim than selected.
G13682493Courtesy of KIA MOTORS AMERICA, INC.
G13682492Courtesy of KIA MOTORS AMERICA, INC.
E-CAN Communication Line Inspection
Inspection Condition (+) Probe (-) Probe Reference
Connector Terminal Connector Terminal
  1. Ignition "ON".
ADAS unit connector 6 (E-CAN high) Chassis ground - Fig.1
ADAS unit connector 20 (E-CAN low) Chassis ground -
  1. Ignition "OFF".
  2. Disconnect battery (-) cable.
  3. Disconnect the electrical connector(s) of all concerned components to the related CAN system.
ADAS unit connector 6 (E-CAN high) Chassis ground - ∞ (infinity)Ω
ADAS unit connector 20 (E-CAN low) Chassis ground - ∞ (infinity)Ω
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
ADAS unit connector 6 (E-CAN high) ICU connector 31 (E-CAN high) Approx. below 1Ω
ADAS unit connector 20 (E-CAN low)

ICU connector 32 (E-CAN low) Approx. below 1Ω
  1. Ignition "OFF".
  2. Disconnect the battery (-) terminal.
  3. Disconnect the electrical connector(s) from the concerned component.
ICU (component side) 31 (E-CAN high) ICU (component side) 32 (E-CAN low) Approx. 120Ω
A/C control module (manual) (component side) 33 (E-CAN high) A/C control module (manual) (component side) 34 (E-CAN low) Approx. 120Ω
A/C control module (auto) (component side) 35 (E-CAN low) A/C control module (auto) (component side) 34 (E-CAN low) Approx. 120Ω

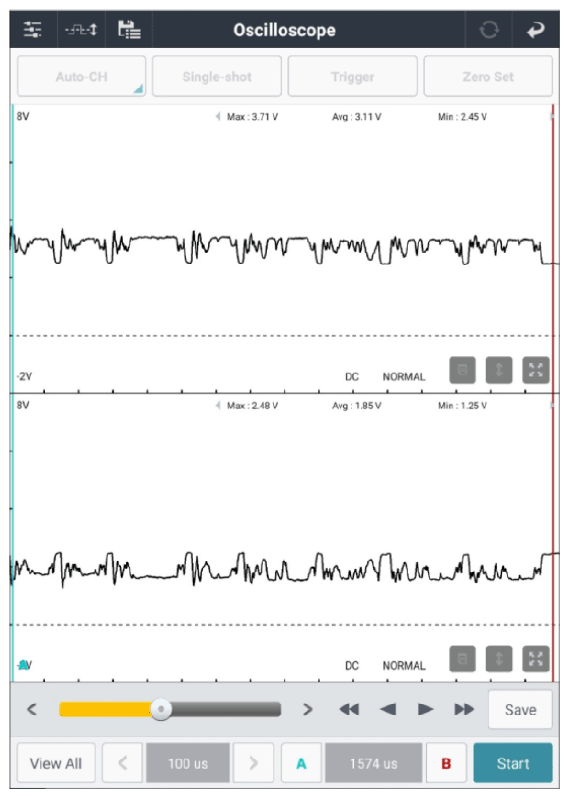

G13682488Courtesy of KIA MOTORS AMERICA, INC.
P-CAN Communication Line Inspection
Inspection Condition (+) Probe (-) Probe Reference
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
ICU connector 17 (P-CAN high) PCM connector 6 (P-CAN high) Approx. below 1Ω
ICU connector 18 (P-CAN low) PCM connector 7 (P-CAN low) Approx. below 1Ω
  1. Ignition "OFF".
  2. Disconnect battery (-) cable.
  3. Disconnect the electrical connector(s) of all concerned components to the related CAN system.
PCM connector 6 (P-CAN high) Chassis ground - ∞ (infinity)Ω
PCM connector 7 (P-CAN low) Chassis ground - ∞ (infinity)Ω
  1. Ignition "ON".
PCM connector 6 (P-CAN high) Chassis ground - Fig. 1
PCM connector 7 (P-CAN low) Chassis ground -
  1. Ignition "OFF".
  2. Disconnect battery (-) terminal.
  3. Disconnect the electrical connector(s) from the concerned component.
ICU (component side) 17 (P-CAN high) ICU (component side) 18 (P-CAN low) Approx. 120Ω
PCM (component side) 6 (P-CAN high) PCM (component side) 7 (P-CAN low) Approx. 120Ω

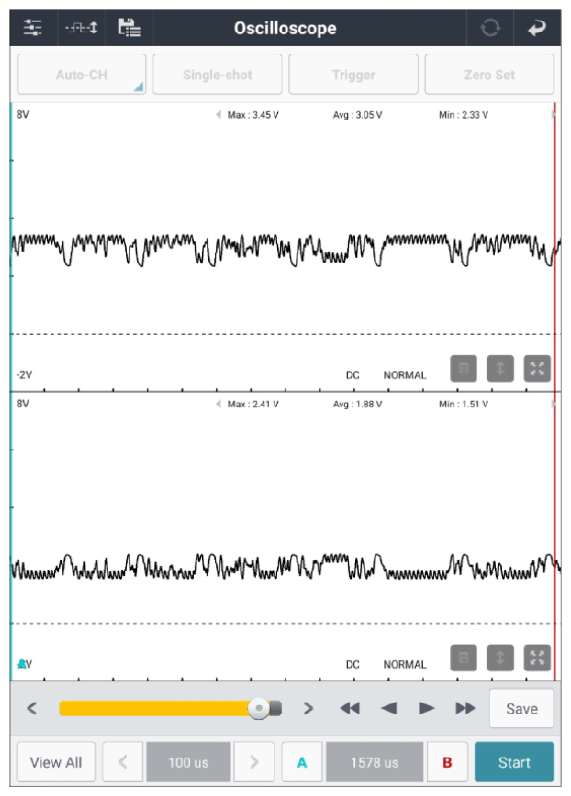

G13682489Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good

Module Circuit Inspection
Inspection Condition (+) Probe (-) Probe Reference
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
ADAS unit connector 1, 14, 16, 19 (power) Chassis ground - B+
ADAS unit connector 3, 12 (ground) Chassis ground - Approx. below 1Ω

Good

No Good
