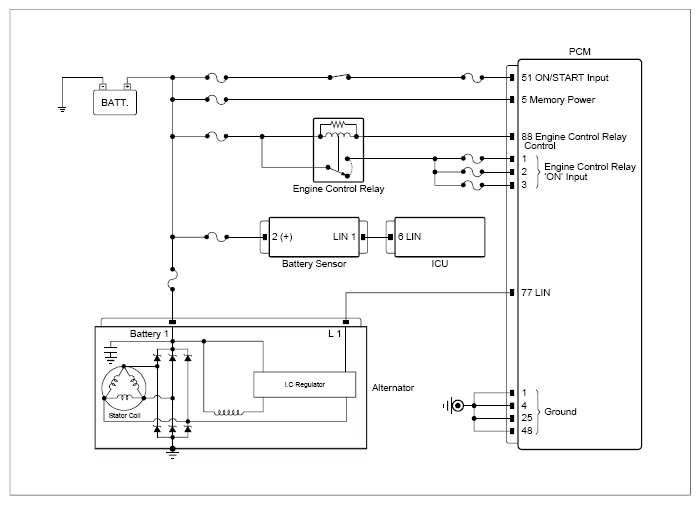

Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Reference
Inspection Condition	Connector	Terminal	Connector	Terminal	Reference
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	Alternator connector	1 (LIN)	PCM connector	77 (LIN)	Approx. below 1Ω
	Alternator connector	1 (LIN)	Chassis ground	-	∞ (infinity)Ω

Good

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
