Circuit Inspection
WARNING: This page is about a different variant/trim than selected.
| CAN Communication Line Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
| Connector | Terminal | Connector | Terminal | ||
|

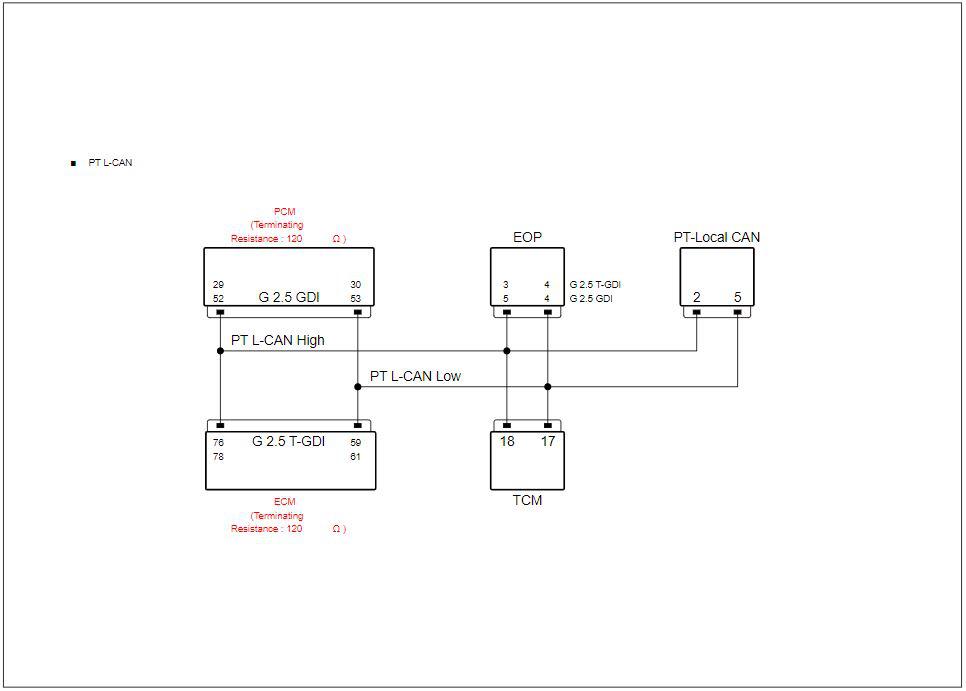

PCM connector | 29, 52 (PT L-CAN high) | Chassis ground | - | Fig.1 |
| PCM connector | 30, 53 (PT L-CAN low) | Chassis ground | - | ||
|
PCM connector | 29, 52 (PT L-CAN high) | Chassis ground | - | ∞ (infinity)Ω |
| PCM connector | 30, 53 (PT L-CAN low) | Chassis ground | - | ∞ (infinity)Ω | |
|
PCM (component side) | 29 (PT L-CAN high) | PCM (component side) | 30 (PT L-CAN low) | Approx. 120Ω |
| PCM (component side) | 52 (PT L-CAN high) | PCM (component side) | 53 (PT L-CAN low) | Approx. 120Ω | |
Good
- Go to "Module Circuit Inspection" procedure.
No Good
- Repair open or short in circuit and then go to "Verification of Repair " procedure.
| Module Circuit Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
| Connector | Terminal | Connector | Terminal | ||
|
PCM connector | 5 (Memory power) | Chassis ground | - | B+ |
| PCM connector | 1, 4, 25, 48 (ground) | Chassis ground | - | Approx. below 1Ω | |
|
PCM connector | 51 (ON/START Input) | Chassis ground | - | B+ |
Good
- Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Repair " procedure.
No Good
- Repair open or short in circuit and then go to "Verification of Repair " procedure.
- If no problems were found with the circuits or connectors, replace the PCM and go to "Verification of Repair " procedure.
