Vehicle S/W Management

WARNING: This page is about a different variant/trim than selected.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig.1 to 5

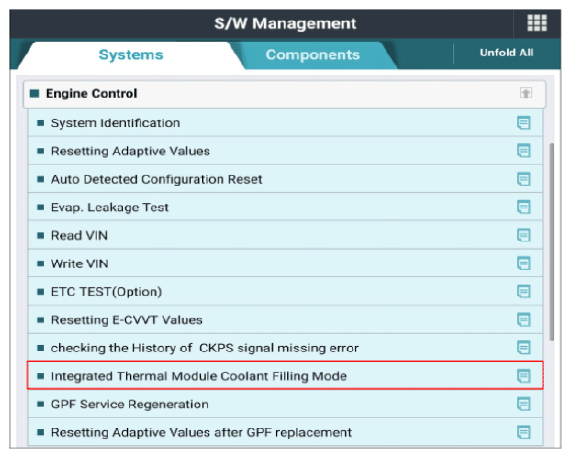

G13682294Courtesy of KIA MOTORS AMERICA, INC.

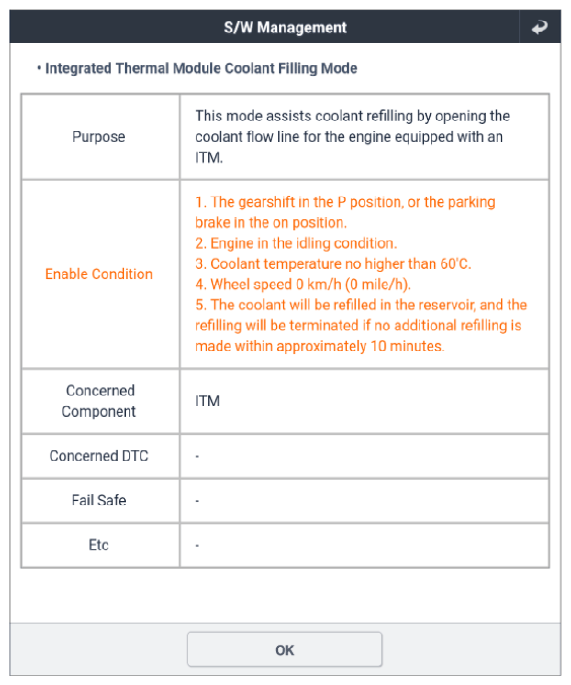

G13682295Courtesy of KIA MOTORS AMERICA, INC.

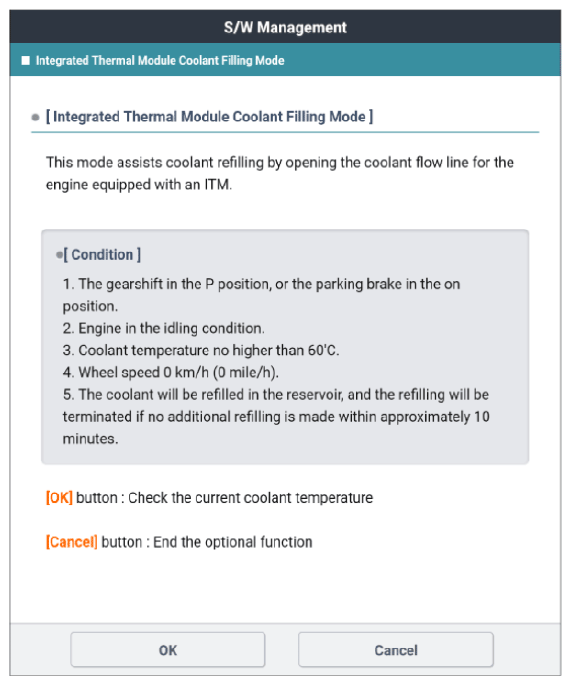

G13682296Courtesy of KIA MOTORS AMERICA, INC.

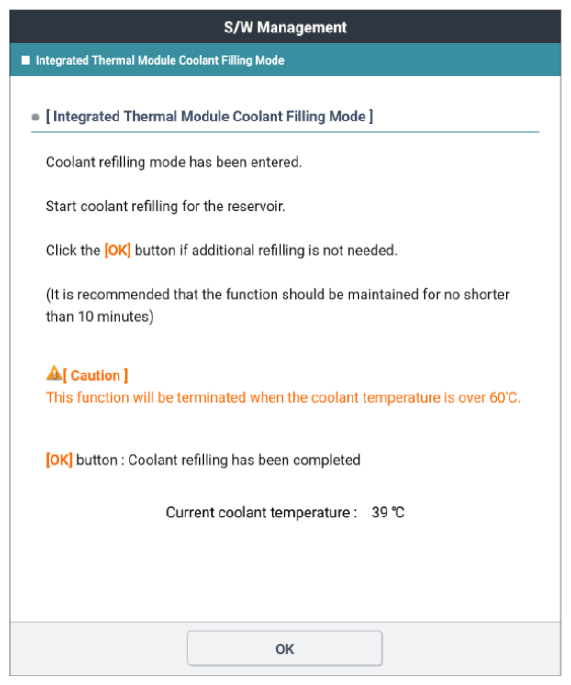

G13682297Courtesy of KIA MOTORS AMERICA, INC.

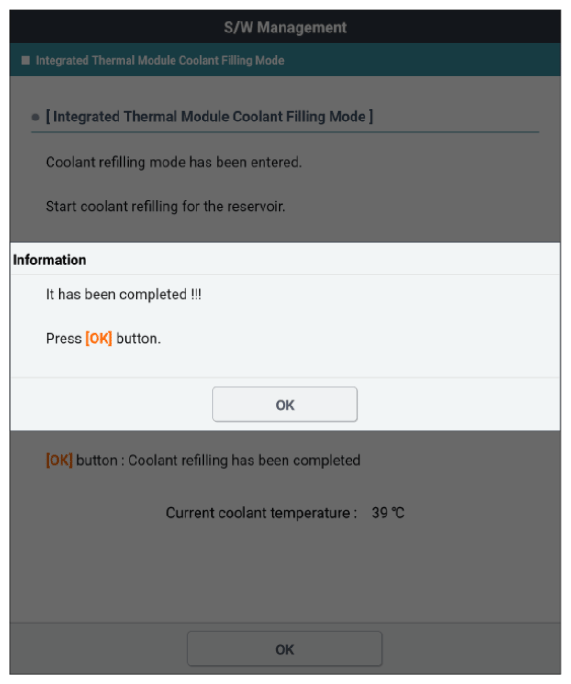

G13682298Courtesy of KIA MOTORS AMERICA, INC.
