Roll rod bracket

WARNING: This page is about a different variant/trim than selected.

Remove the engine room under cover.
(Refer to Engine And Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

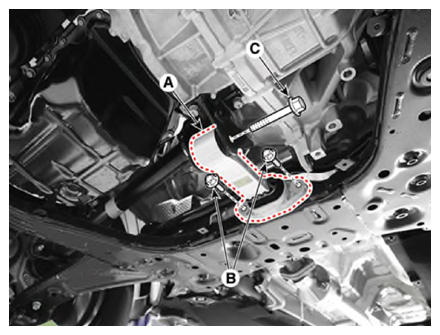

Remove the roll rod bracket (A).
Tightening torque:

Bolts (B): 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.1 - 47.0 lb.ft)

Bolt (C): 107.8 - 127.4 N.m (11.0 - 13.0 kgf.m, 79.5 - 94.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Always use a new roll rod bracket bolt (C).

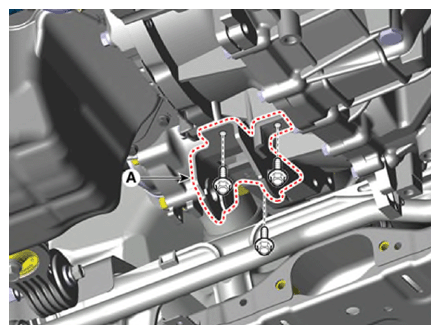

Remove the roll rod mounting support bracket (A).
Tightening torque:

49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.1 - 50.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
