Engine Mounting Bracket

WARNING: This page is about a different variant/trim than selected.
  1. Remove the engine room under cover.

    (Refer to Engine And Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

  2. Install the jack to the edge of oil pan to support the engine.
    NOTE: Put the rubber block between the jack and oil pan to avoid damaging the oil pan.
  3. Remove the engine mounting support bracket (A).

    Tightening torque:

    88.2 - 107.8 N.m (9.0 - 11.0 kgf.m, 65.0 - 79.5 lb.ft)

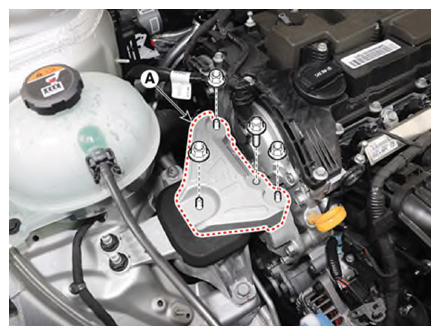

    G13660737Courtesy of KIA MOTORS AMERICA, INC.
  4. Separate the reservoir tank

    (Refer to Cooling system - "RESERVOIR TANK ")

  5. Remove the engine mounting bracket (A).

    Tightening torque:

    68.6 - 88.2 N.m (7.0 - 9.0 kgf.m, 50.6 - 65.0 lb.ft)

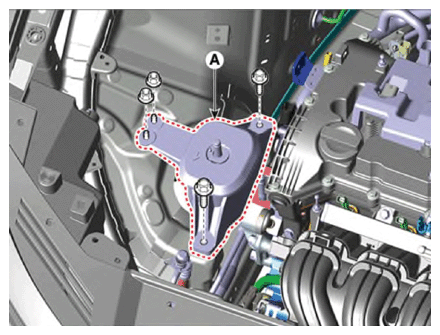

    G13660738Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in the reverse order of removal.
