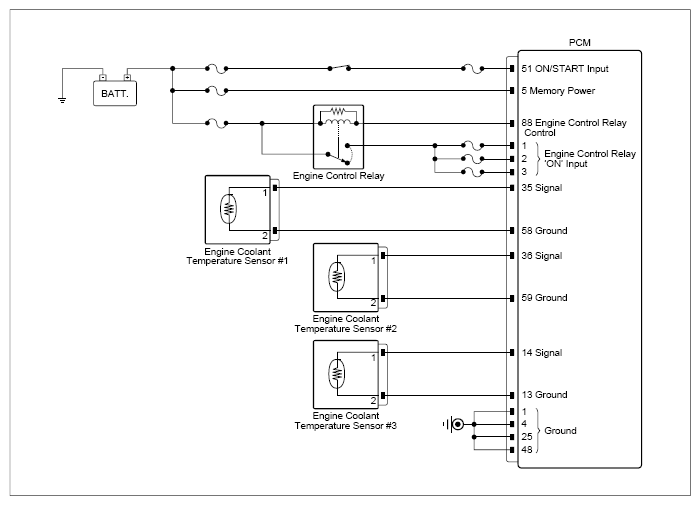

Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Reference
Inspection Condition	Connector	Terminal	Connector	Terminal	Reference
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	ECTS #2 connector	1 (signal)	Chassis ground	-	Approx. 5V
	ECTS #2 connector	2 (ground)	Chassis ground	-	Approx. 0V
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	ECTS #2 connector	1 (signal)	Chassis ground	-	∞ (infinity)Ω

Good

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
