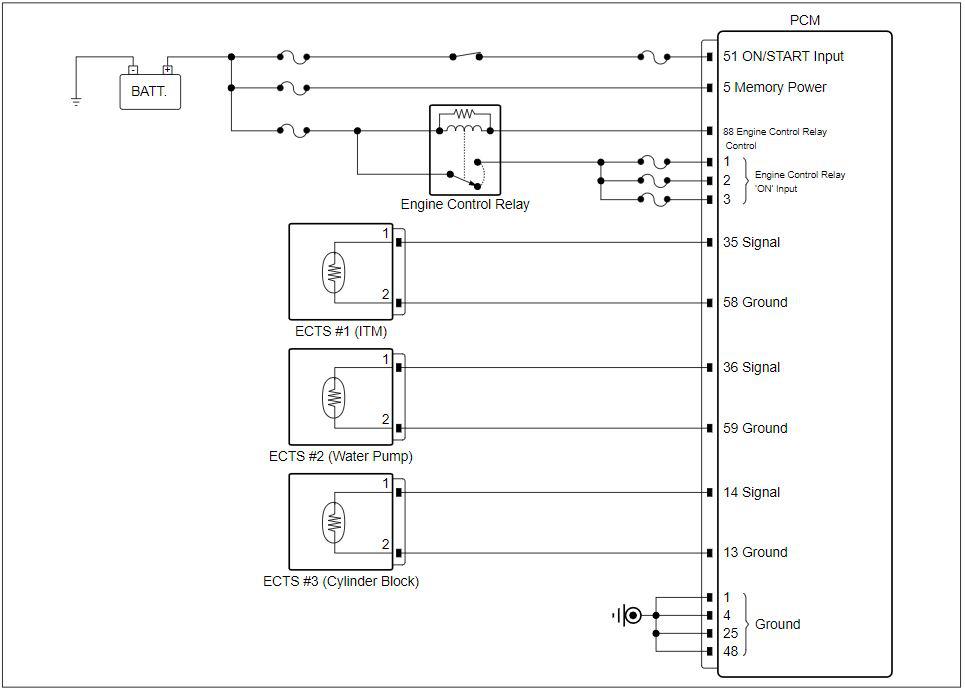

Circuit Inspection
WARNING: This page is about a different variant/trim than selected.
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
ECTS #1 (ITM) connector | 1 (signal) | Chassis ground | - | Approx. 5V |
| ECTS #1 (ITM) connector | 2 (ground) | Chassis ground | - | Approx. 0V | |
|
ECTS #1 (ITM) connector | 1 (signal) | Chassis ground | - | ∞(infinity)Ω |
|
ECTS #2 (water pump) connector | 1 (signal) | Chassis ground | - | Approx. 5V |
| ECTS #2 (water pump) connector | 2 (ground) | Chassis ground | - | Approx. 0V | |
|
ECTS #2 (water pump) connector | 1 (signal) | Chassis ground | - | ∞(infinity)Ω |
|
ECTS #3 (cylinder block) connector | 1 (signal) | Chassis ground | - | Approx. 5V |
| ECTS #3 (cylinder block) connector | 2 (ground) | Chassis ground | - | Approx. 0V | |
|
ECTS #3 (cylinder block) connector | 1 (signal) | Chassis ground | - | ∞(infinity)Ω |
|
ITM motor connector | 4 (motor (+)) | Chassis ground | - | Approx. 11.9V |
| ITM motor connector | 5 (motor (-)) | Chassis ground | - | Approx. 11.8V | |
| ITM motor connector | 3 (power) | Chassis ground | - | Approx. 5V | |
| ITM motor connector | 1 (ground) | Chassis ground | - | Approx. 0V | |
| ITM motor connector | 2 (signal) | Chassis ground | - | Approx. 4.9V | |
|
ITM motor connector | 4 (motor (+)) | Chassis ground | - | ∞(infinity)Ω |
| ITM motor connector | 5 (motor (-)) | Chassis ground | - | ∞(infinity)Ω | |
| ITM motor connector | 2 (signal) | Chassis ground | - | ∞(infinity)Ω | |
| ITM motor connector | 2 (signal) | PCM connector | 101 (signal) | ∞(infinity)Ω | |
Good
- Go to "Component Inspection " procedure.
No Good
- Repair or replace as necessary and then, go to "Verification of Repair " procedure.
