Vehicle S/W Management
WARNING: This page is about a different variant/trim than selected.
| Inspection Condition |
Inspection Procedure |
Reference |
- Ignition "ON".
|
- Connect KDS to "Data Link Connector (DLC)".
- Perform "Vehicle S/W Management" of concerned component with KDS.
|

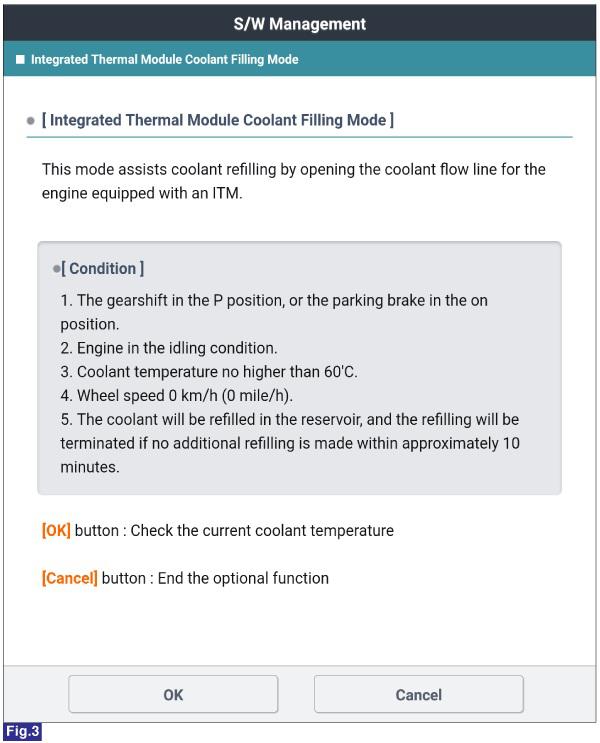

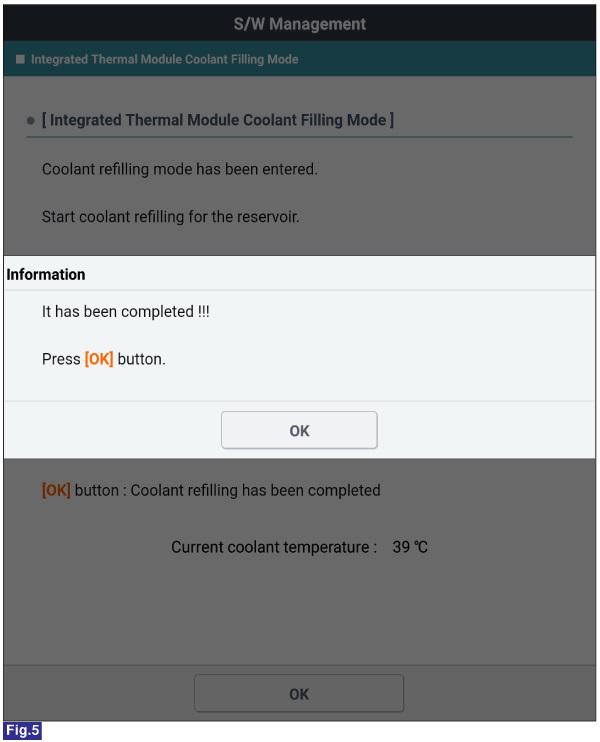

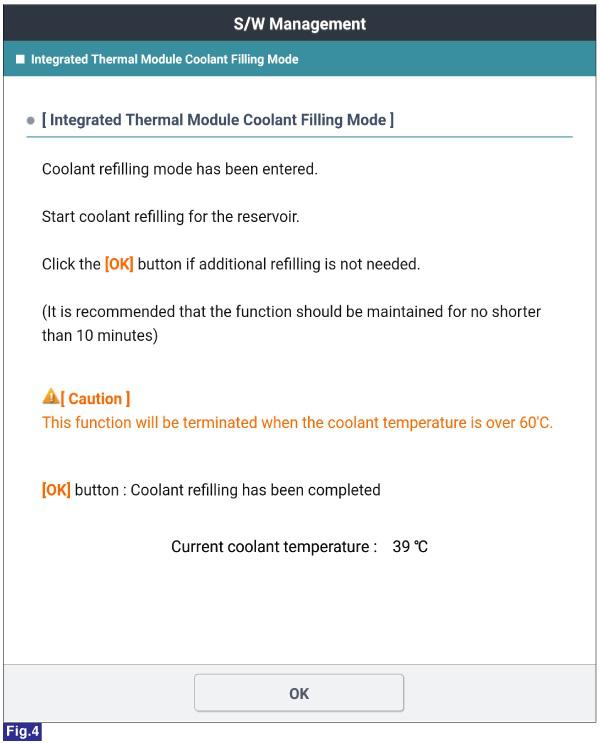

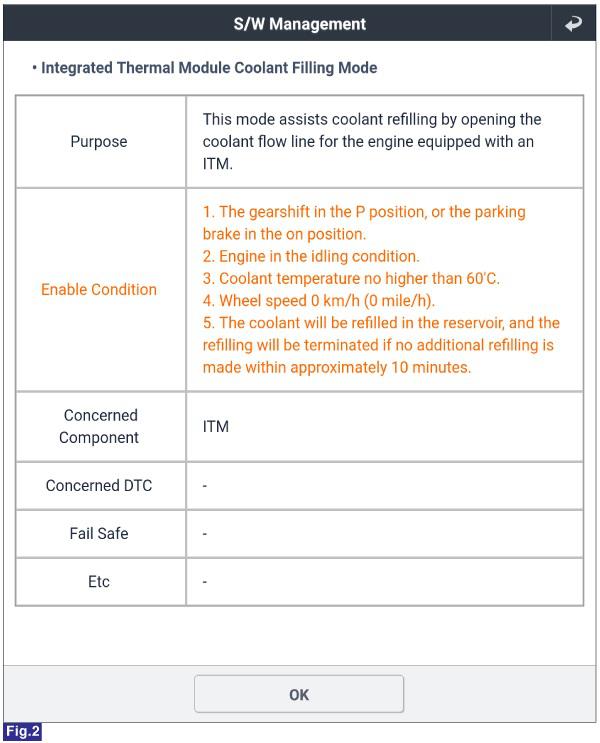

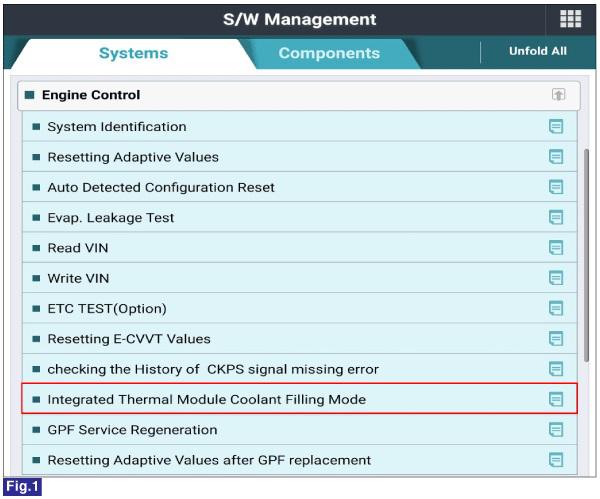

Fig.1 to 5 |
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
Resetting Adaptive Values
| Inspection Condition |
Inspection Procedure |
Reference |
- Ignition "ON".
|
- Connect KDS to "Data Link Connector (DLC)".
- Perform "Vehicle S/W Management" of concerned component with KDS.
|

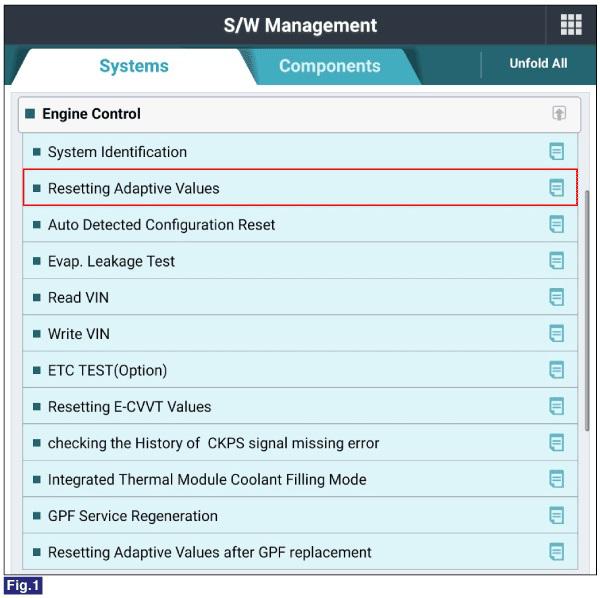

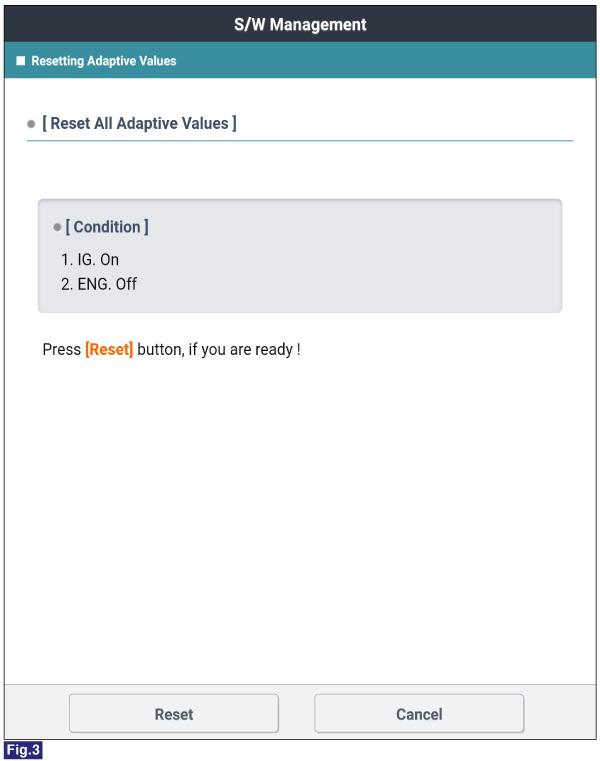

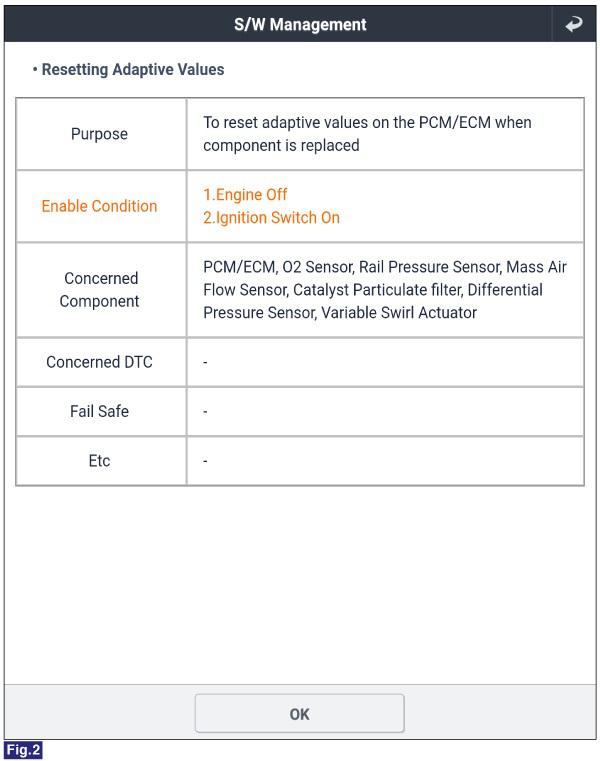

Fig.1 to 5 |
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
