Vehicle S/W Management

WARNING: This page is about a different variant/trim than selected.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.

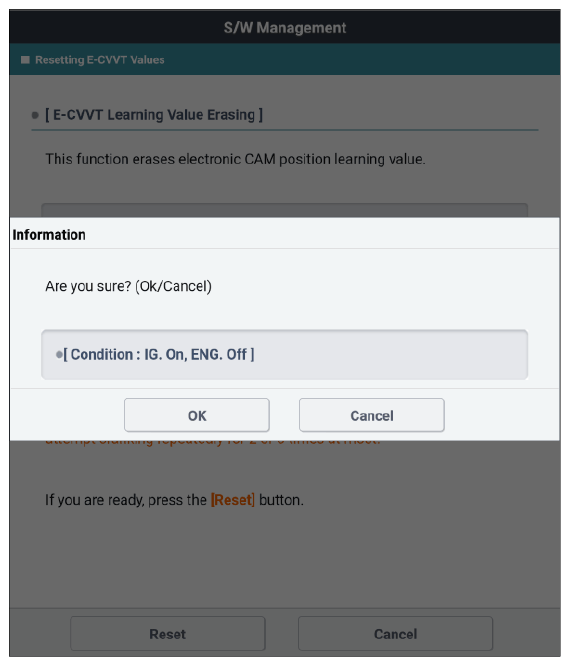

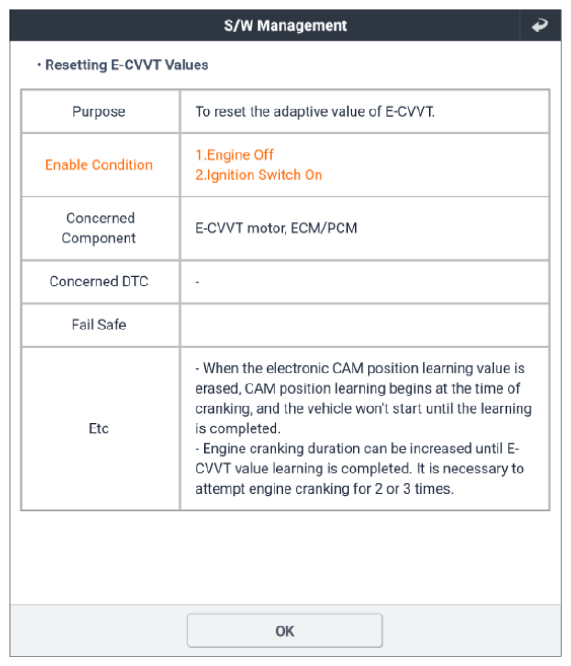

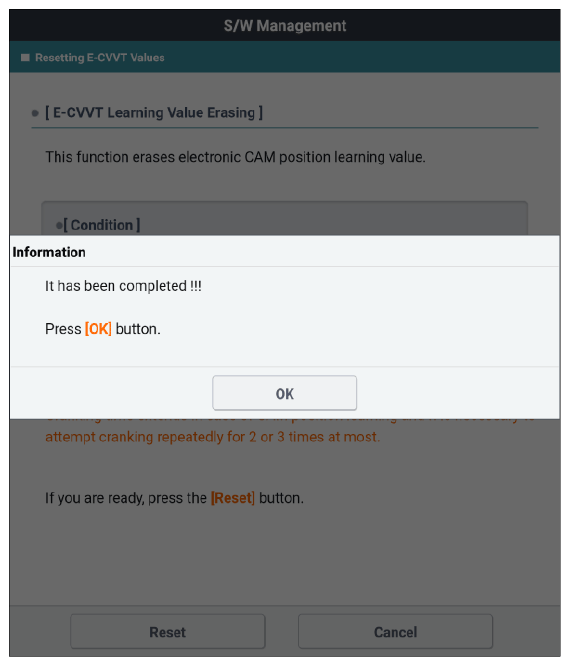

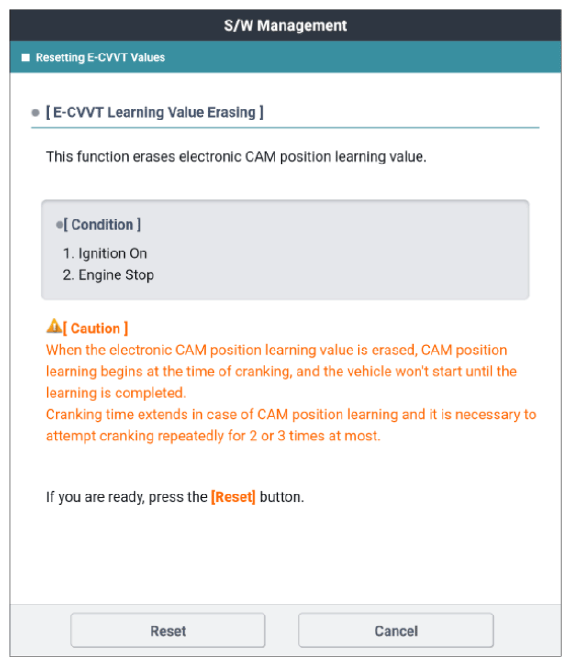

 Fig.1 to 4
G13681638Courtesy of KIA MOTORS AMERICA, INC.
G13681639Courtesy of KIA MOTORS AMERICA, INC.
G13681640Courtesy of KIA MOTORS AMERICA, INC.
G13681641Courtesy of KIA MOTORS AMERICA, INC.
