Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

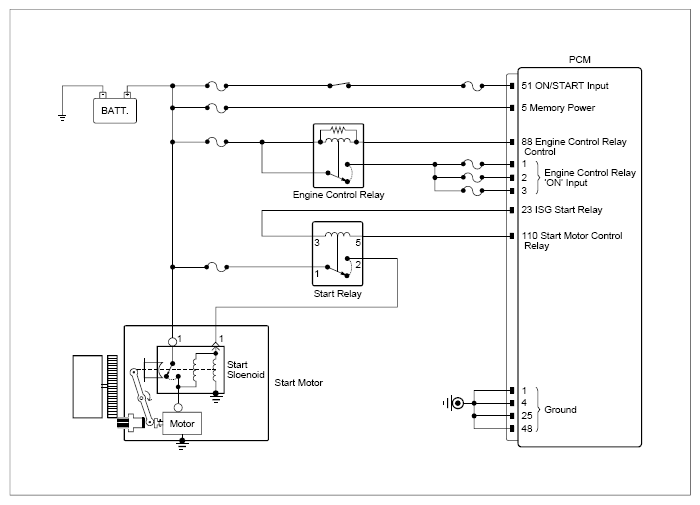

G13681259

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	Starter relay connector	1 (start relay power)	Chassis ground	-	B+
	Starter relay connector	2 (motor power)	Chassis ground	-	Approx. 0V
	Starter relay connector	5 (start motor control relay)	Chassis ground	-	Approx. 0V
	Starter relay connector	3 (start motor control switch)	Chassis ground	-	Approx. 2.5V
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Engine "ON".	Starter relay connector	1 (start relay power)	Chassis ground	-	B+
	Starter relay connector	2 (motor power)	Chassis ground	-	Approx. 0V
	Starter relay connector	5 (start motor control relay)	Chassis ground	-	B+
	Starter relay connector	3 (start motor control switch)	Chassis ground	-	Approx. 0V

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
