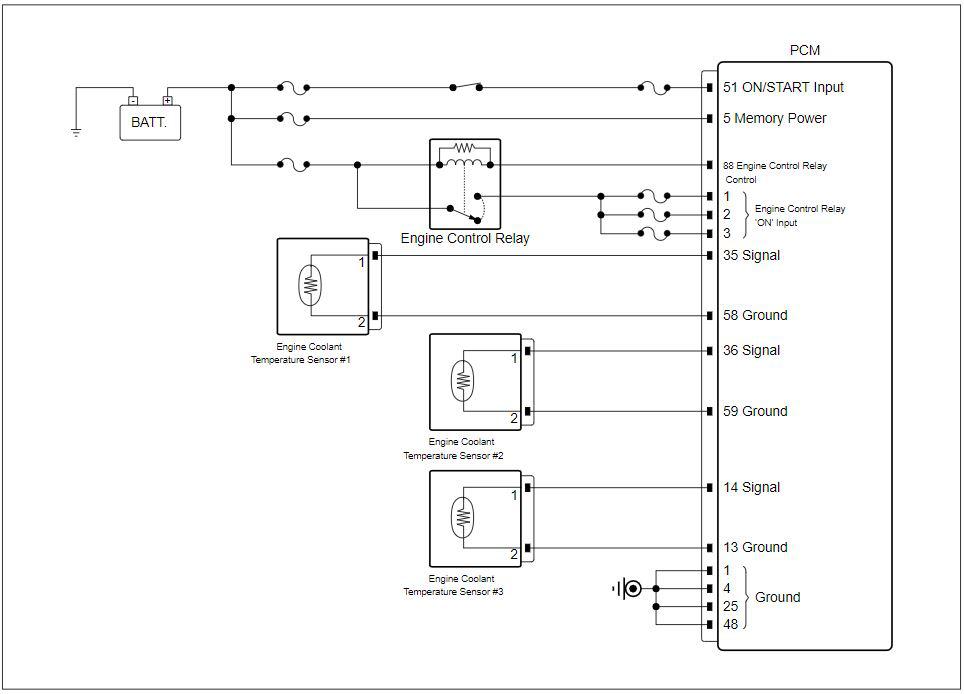

Circuit Inspection
WARNING: This page is about a different variant/trim than selected.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|
ECTS #1 Connector | 1 (signal) | Chassis ground | - | Approx. 5V |
| ECTS #1 Connector | 2 ground) | Chassis ground | - | Approx. 0V | |
|
ECTS #1 Connector | 1 (signal) | Chassis ground | - | ∞(infinity)Ω |
Good
- Go to "Component Inspection " procedure.
No Good
- Repair as necessary and then go to "Verification of Repair " procedure.
