Inspection Procedure
WARNING: This page is about a different variant/trim than selected.
■ Fuel filler cap inspection
- Cracks or damages on fuel filler cap.
- Proper installation of fuel filler cap.
- Correct type of fuel filler cap.
■ Fuel tank leakage inspection
- Cracks or damages on fuel tank.

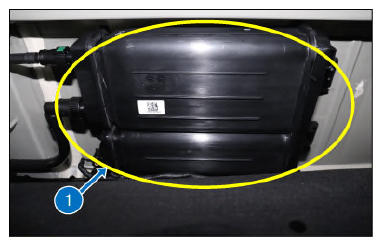

■ Canister inspection
- Cracks or leakage on canister.
- Loose connection, distortion, or damage of the vapor hose/tube.
Good
- Go to "WIRING INSPECTION " procedure.
No Good
- Repair as necessary and then go to "VERIFICATION OF REPAIR " procedure.
