Vehicle S/W Management

WARNING: This page is about a different variant/trim than selected.

Inspection Condition	Inspection Procedure	Reference

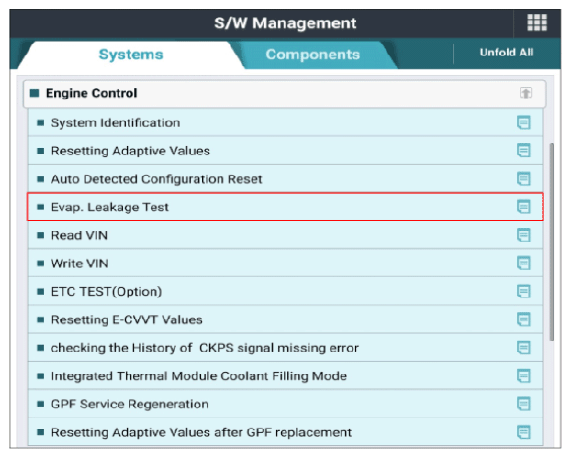

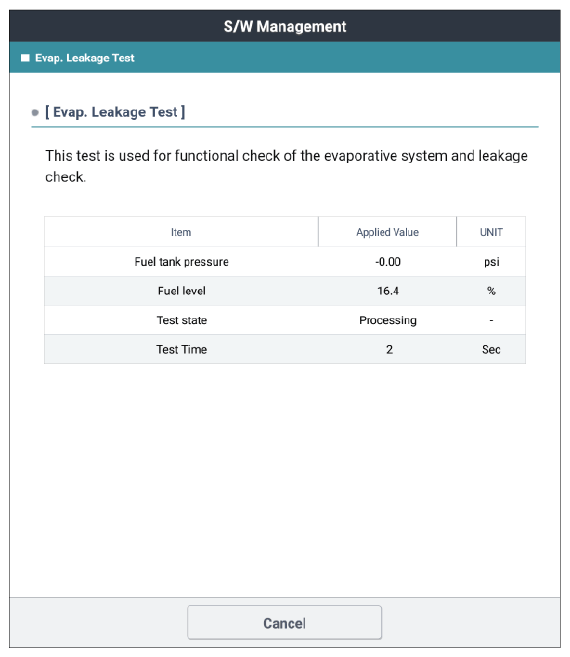

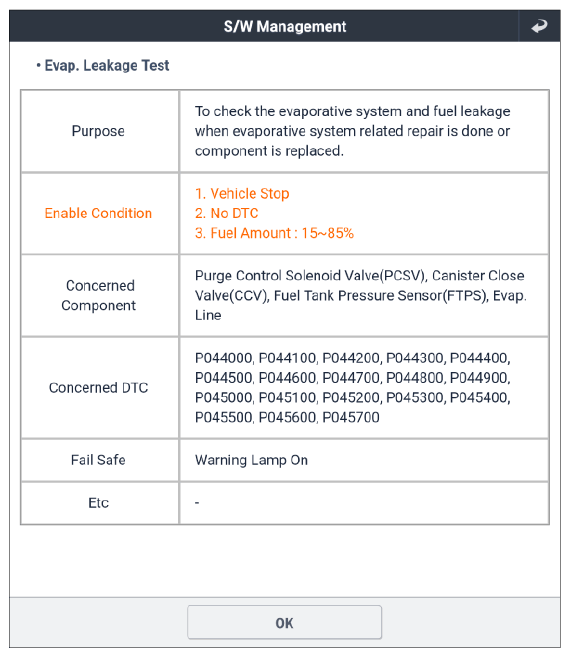

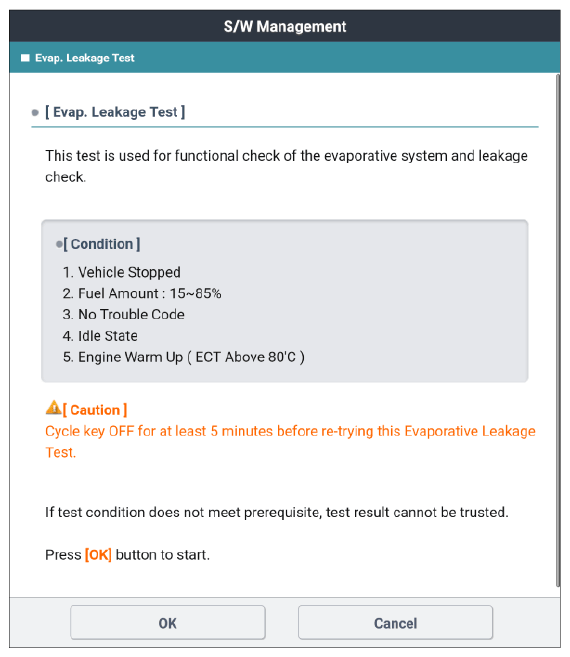

Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.	Fig.1 to 5

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.

No Good
