Component Inspection
WARNING: This page is about a different variant/trim than selected.
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

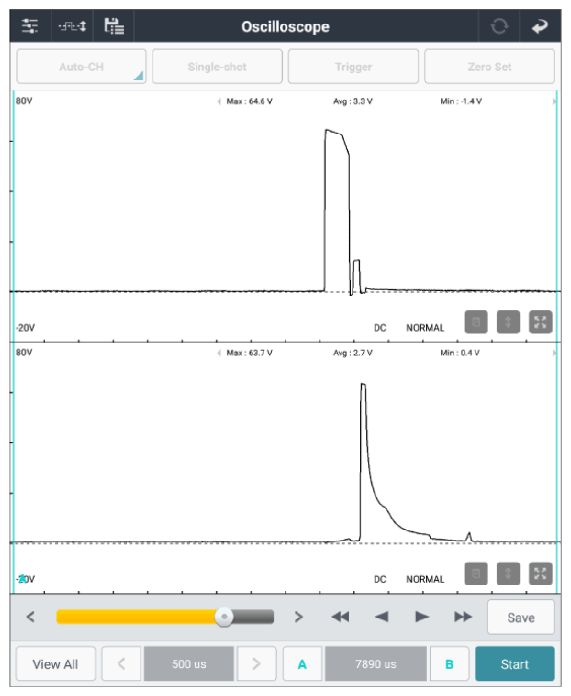

GDI injector connector | 2 (high) | Chassis ground | - | Fig.1 |
| GDI injector connector | 1 (low) | Chassis ground | - | ||
Good
- Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.
No Good
- Go to "GDI Injector Inspection" procedure.
| GDI Injector Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|
GDI injector (component side) | 1 (low) | GDI injector (component side) | 2 (high) | Approx. 1.4 to 1.7Ω ((20°C) (68°F)) |
Good
- Go to "SYSTEM INSPECTION " procedure.
No Good
- Repair as necessary and go to "VERIFICATION OF REPAIR " procedure.
