Component Inspection
WARNING: This page is about a different variant/trim than selected.
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

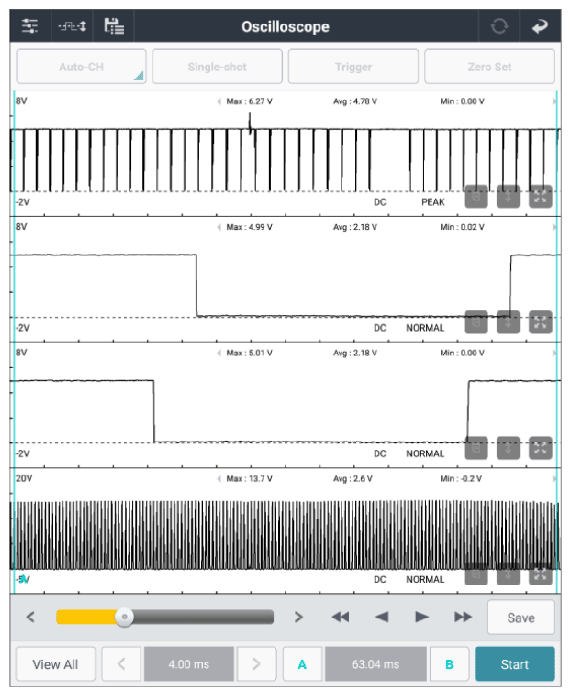

CKPS connector | 1 (signal) | CMPS - In connector | 1 (signal) | Fig.1 |
| CMPS - Ex connector | 1 (signal) | E-CVVT connector | 2 (motor +) | ||
Good
- Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- Check the CVVT sprocket, crankshaft sprocket teeth for abnormal wear, cracks or damage. Replace if necessary.
- Check a contact surface of the chain tensioner arm and guide for abnormal wear, cracks or damage. Replace if necessary.
- Check that the chain tensioner piston slides smoothly and inspect whether the ratchet operates normally. Replace if necessary.
- If no problems were found with the circuits or connectors, replace the CKPS and go to "VERIFICATION OF REPAIR " procedure.
