Component Inspection
WARNING: This page is about a different variant/trim than selected.
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

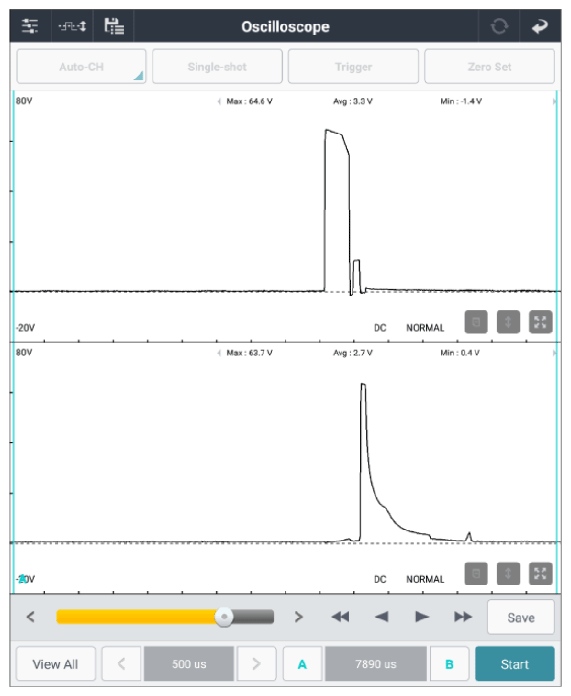

GDI injector #1 connector | 2 (high) | Chassis ground | - | Fig.1 |
| GDI injector #1 connector | 1 (low) | Chassis ground | - | ||
Good
- Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.
No Good
- Go to "GDI Injector Inspection" procedure.
| GDI Injector Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|
GDI injector (component side) | 1 (low) | GDI injector (component side) | 2 (high) | Approx. 1.42 to 1.57Ω (20°C/68°F) |
Good
- Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the GDI injector #1 and go to "VERIFICATION OF REPAIR " procedure.
* In case of replacing the component, perform following "Resetting Adaptive Values" procedure.
