Component Inspection

WARNING: This page is about a different variant/trim than selected.

Inspection Condition	Inspection Procedure	Reference

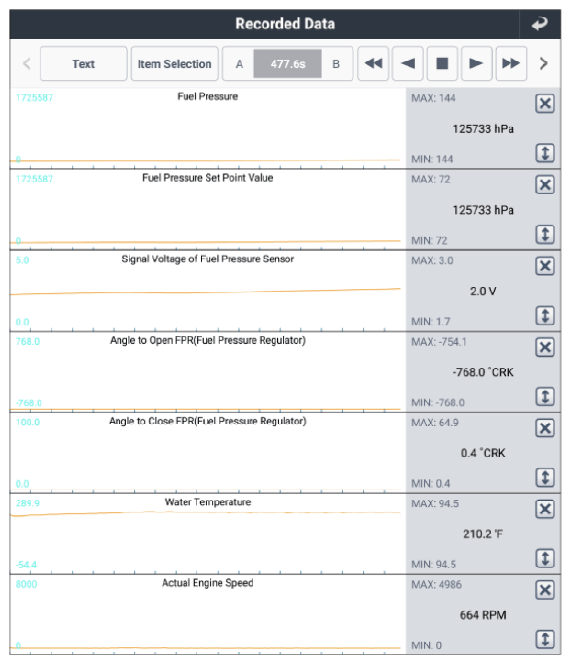

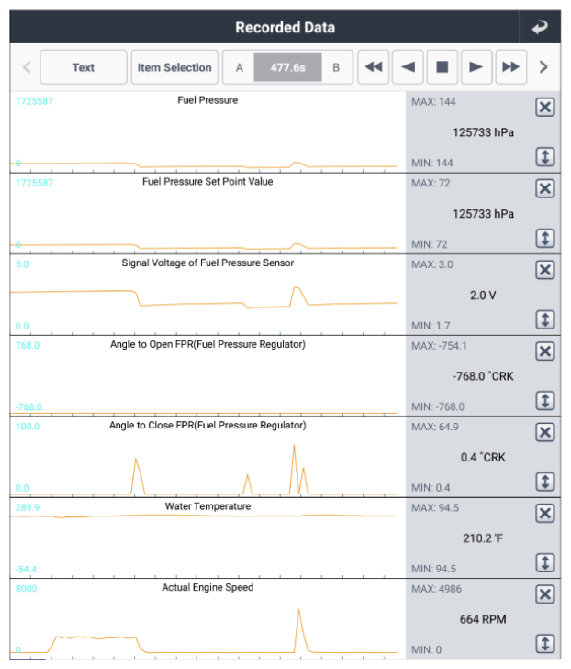

Engine "ON".	Connect KDS to "Data Link Connector (DLC)". Monitor parameters in "Current Data" with KDS.	Fig.1 to 2

G13680207

Courtesy of KIA MOTORS AMERICA, INC.

G13680208

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the FRPS and go to "VERIFICATION OF REPAIR " procedure.
