Component Inspection
WARNING: This page is about a different variant/trim than selected.
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

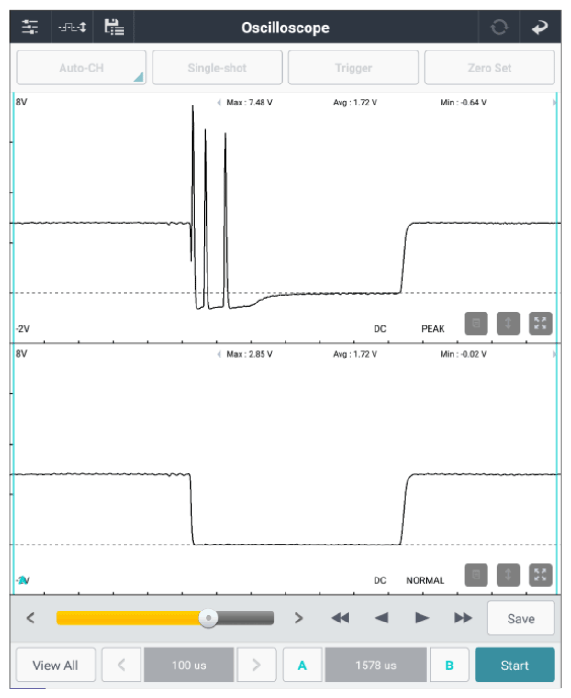

FPCV connector | 2 (high) | Chassis ground | - | Fig.1 |
| FPCV connector | 1 (low) | Chassis ground | - | ||
|

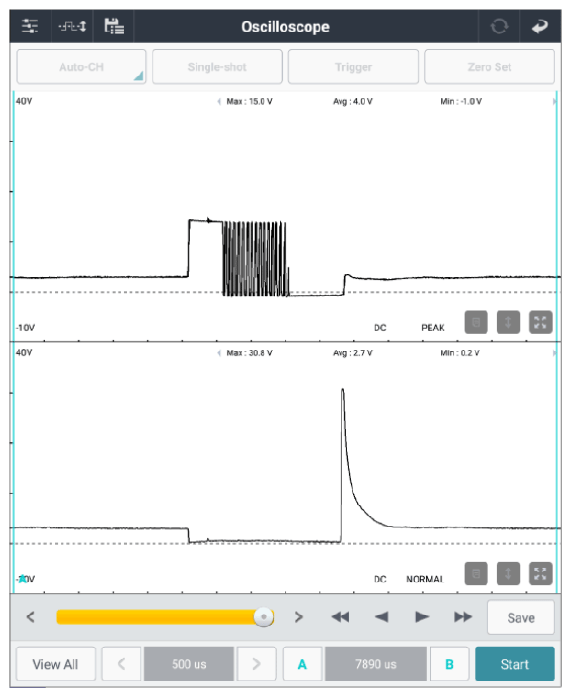

FPCV connector | 2 (high) | Chassis ground | - | Fig.2 |
| FPCV connector | 1 (low) | Chassis ground | - | ||
Good
- Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the FPCV and go to "VERIFICATION OF REPAIR " procedure.
