Wiring harness ground state inspection
WARNING: This page is about a different variant/trim than selected.
NOTE:
- Ground state
- Mounting bolt tightening state (Chassis)
- Mounting bolt tightening state (Engine)
- Check the status of ground fault by chassis paint
 Courtesy of KIA MOTORS AMERICA, INC.
|

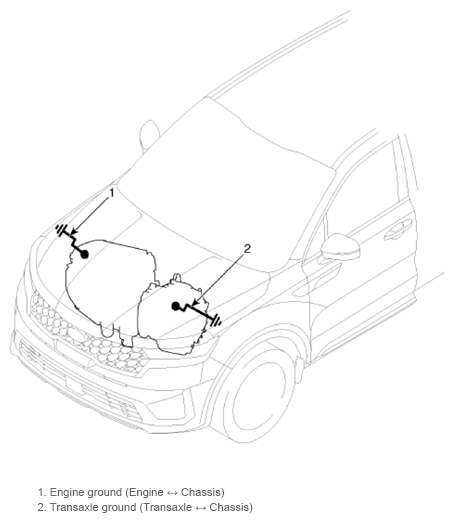

- Engine ground (Engine ↔ Chassis)
- Transaxle ground (Transaxle ↔ Chassis)
NOTE:
Check the ground point.
(Refer to ETM Harness Layout - "Ground Point")
