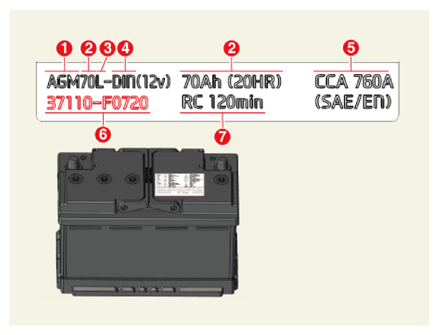

Battery Label Information
WARNING: This page is about a different variant/trim than selected.
- Battery Type
- AGM: Absorbent Glass Material
- MF: Maintenance Free
- CMF: Closed Maintenance Free
- Battery Capacity (20 HR)
- Positive (+) Terminal Location
- L: Left
- R: Right
- Battery Terminal Type
- DIN (Deutsche Industric Normen): Recessed terminal
- BCI (Battery Council International): Intruding terminal
- Cold Cranking Ampere (CCA)
Information
- Cold Cranking Ampere (CCA): CCA is a rating used in the battery industry to define a battery's ability to start an engine in cold temperatures.
- The rating is the number of amps a new, fully charged battery can deliver at -18°C (-0.4°F) for 30 seconds, while maintaining a voltage of at least 7.2 V for a 12 V battery.
- The higher the CCA rating, the greater the starting power of the battery.
- Part Number
- Reserve Capacity (RC)
Information
- RC is a battery industry rating, defining a battery's ability to power a vehicle with an inoperative alternator or fan belt.
- The rating is the number of minutes a battery at 26.7°C (80°F) can be discharged at 25 amps and maintain a voltage of 10.5 V for a 12 V battery.
- The higher the reserve rating, the longer your vehicle can operate should your alternator or fan belt fail.
