Inspect Rotor

WARNING: This page is about a different variant/trim than selected.

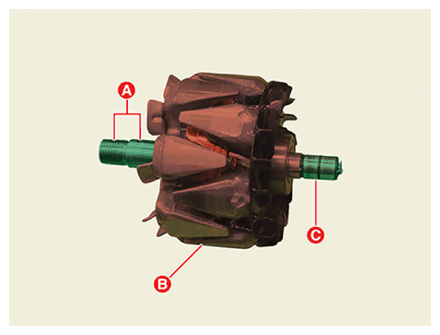

Check that there is continuity between the slip rings (C).

Courtesy of KIA MOTORS AMERICA, INC.
Check that there is no continuity between the slip rings and the rotor (B) or rotor shaft (A).
If the rotor fails either continuity check, replace the rotor.
