Monitor KDS Data

Inspection Condition Inspection Procedure Reference
  1. Shift lever position "P".
  2. Engine "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Monitor "Pressure Sensor" parameter in "Current Data" with KDS.

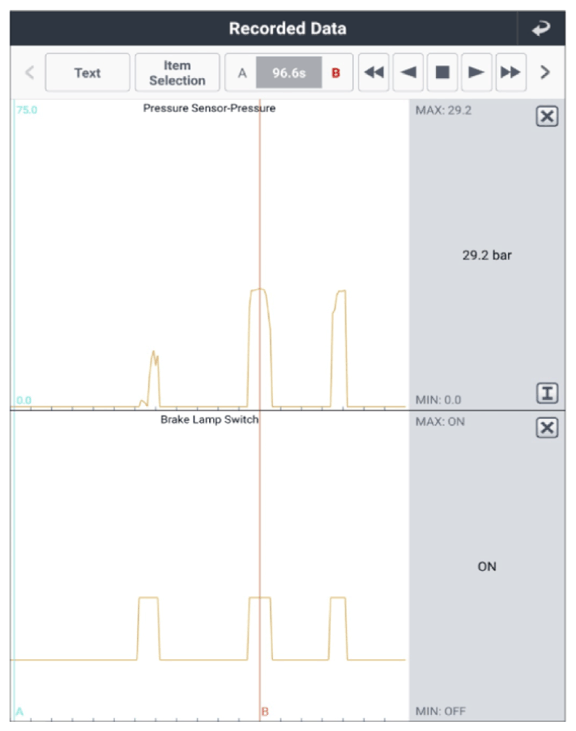

 Fig.1
G13666688Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
