Component Inspection: Notes

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "HCU Air Bleeding Mode" in "Vehicle S/W management" with KDS.
 Fig.1 to 5

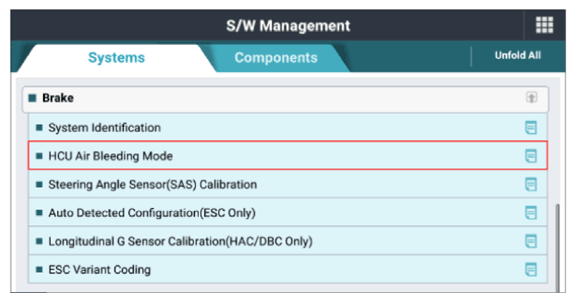

G13666681Courtesy of KIA MOTORS AMERICA, INC.

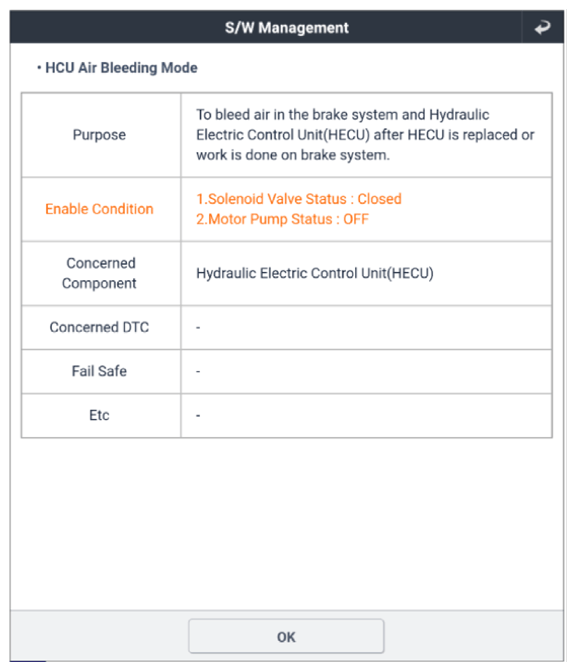

G13666682Courtesy of KIA MOTORS AMERICA, INC.

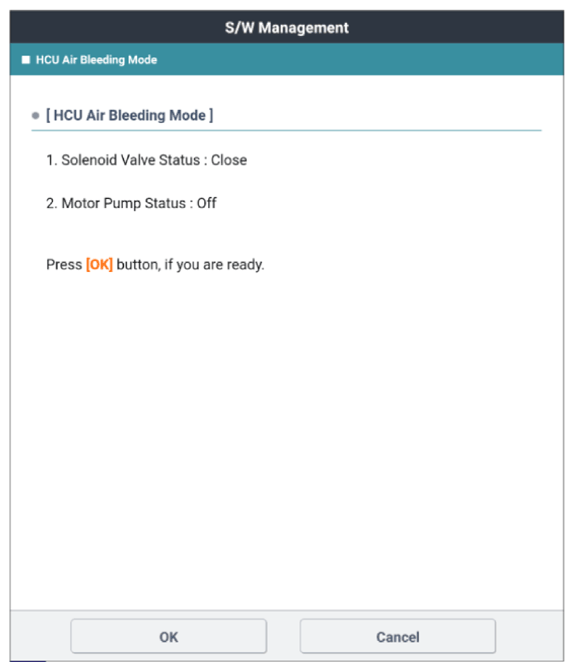

G13666683Courtesy of KIA MOTORS AMERICA, INC.

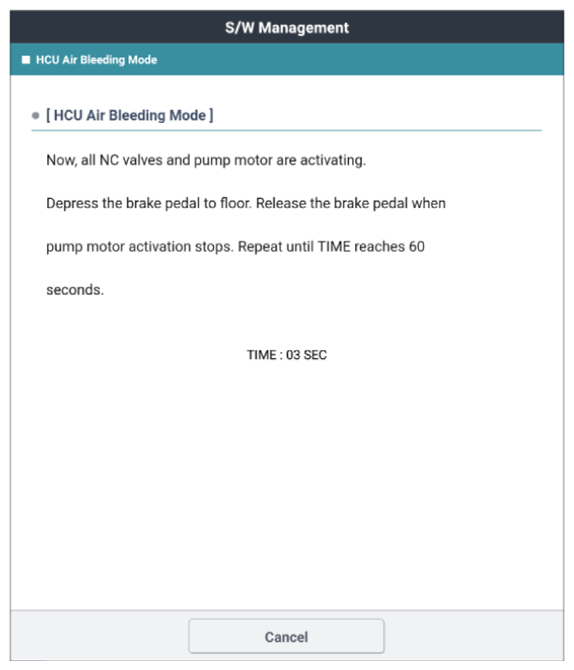

G13666684Courtesy of KIA MOTORS AMERICA, INC.
G13666685Courtesy of KIA MOTORS AMERICA, INC.
