Monitor KDS Data
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
* In the case of 2WD vehicles, the vehicle's speed is not output because only the driving wheel rotates in the lift. |

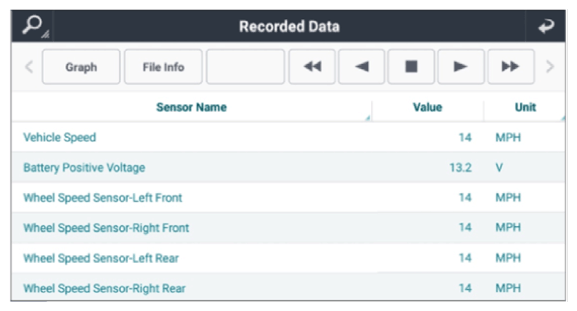

Fig.1 |
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
No Good
- Go to "WIRING INSPECTION " procedure.
