Circuit Inspection

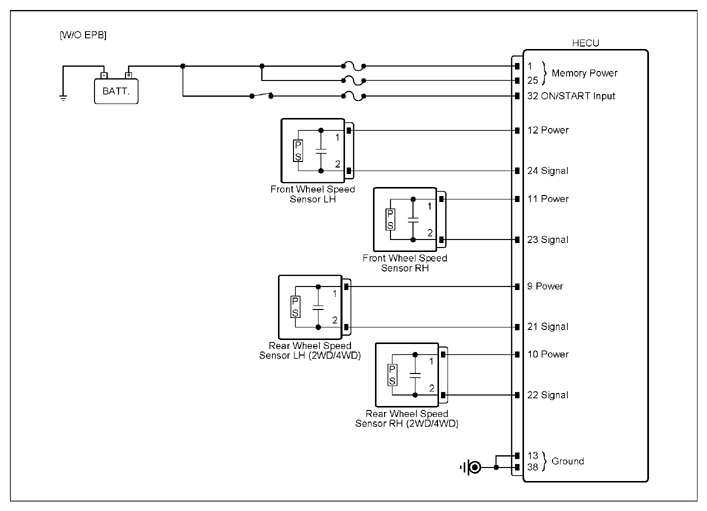

G13666592Courtesy of KIA MOTORS AMERICA, INC.

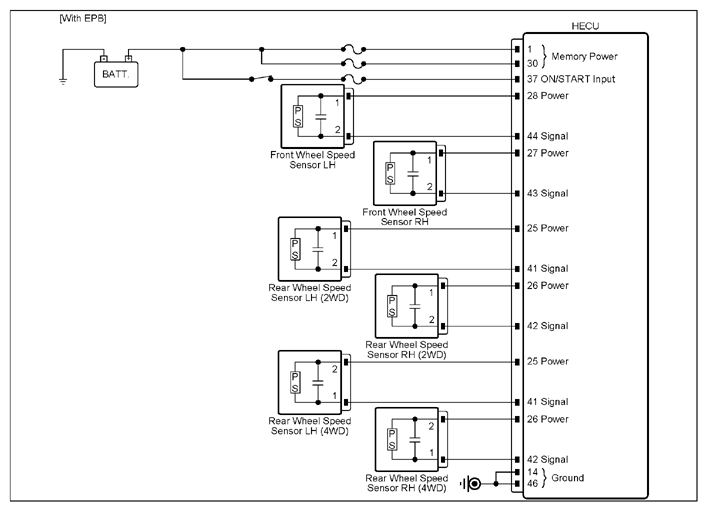

G13666593Courtesy of KIA MOTORS AMERICA, INC.
Circuit Inspection (W/O EPB)
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
 WSS FR connector 2 (signal) Chassis ground - ∞ (infinity)Ω
WSS FR connector 1 (power) HECU connector 11 (power) Approx. below 1Ω
WSS FR connector 2 (signal) HECU connector 23 (signal) Approx. below 1Ω
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
  3. Ignition "ON".
 WSS FR connector 2 (signal) Chassis ground - 0V
WSS FR connector 1 (power) Chassis ground - Approx. 11.5V
  1. Ignition "ON".
 WSS FR connector 2 (signal) Chassis ground - 0V
WSS FR connector 1 (power) Chassis ground - Approx. 11.2V
Circuit Inspection (With EPB)
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
 WSS FR connector 2 (signal) Chassis ground - ∞ (infinity)Ω
WSS FR connector 1 (power) HECU connector 27 (power) Approx. below 1Ω
WSS FR connector 2 (signal) HECU connector 43 (signal) Approx. below 1Ω
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
  3. Ignition "ON".
 WSS FR connector 2 (signal) Chassis ground - 0V
WSS FR connector 1 (power) Chassis ground - Approx. 11.5V
  1. Ignition "ON".
 WSS FR connector 2 (signal) Chassis ground - 0V
WSS FR connector 1 (power) Chassis ground - Approx. 11.2V

Good

No Good
