Component Inspection

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Measure the oscilloscope by connecting a 180Ω resistor between the (+) probe and the (-) probe. Engine "ON". Driving.	WSS FL connector (W/O EPB)	1 (power)	Chassis ground	-	Fig.1 to 3
	WSS FL connector (With EPB)	1 (power)	Chassis ground	-	Fig.1 to 3

G13666576

Courtesy of KIA MOTORS AMERICA, INC.

* Connecting the resistor to the WSS occurs a DTC. Check the oscilloscope and clear the DTC.

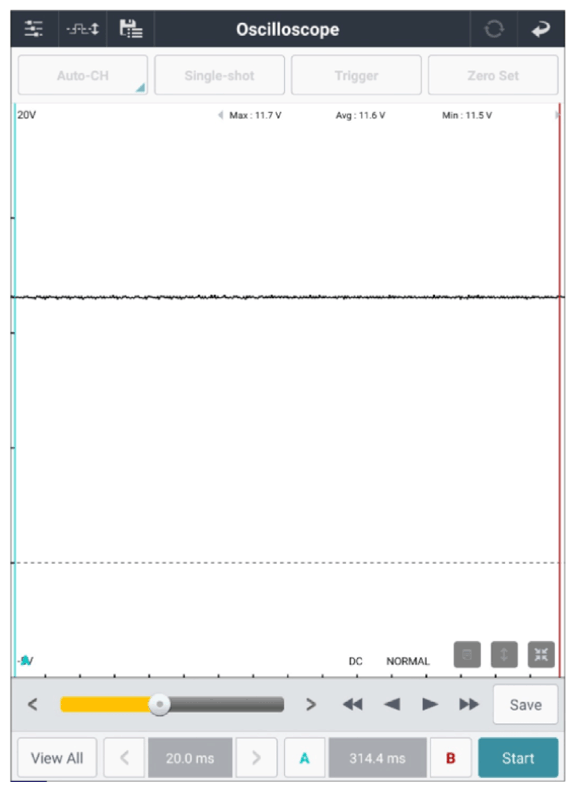

G13666577

Courtesy of KIA MOTORS AMERICA, INC.

G13666578

Courtesy of KIA MOTORS AMERICA, INC.

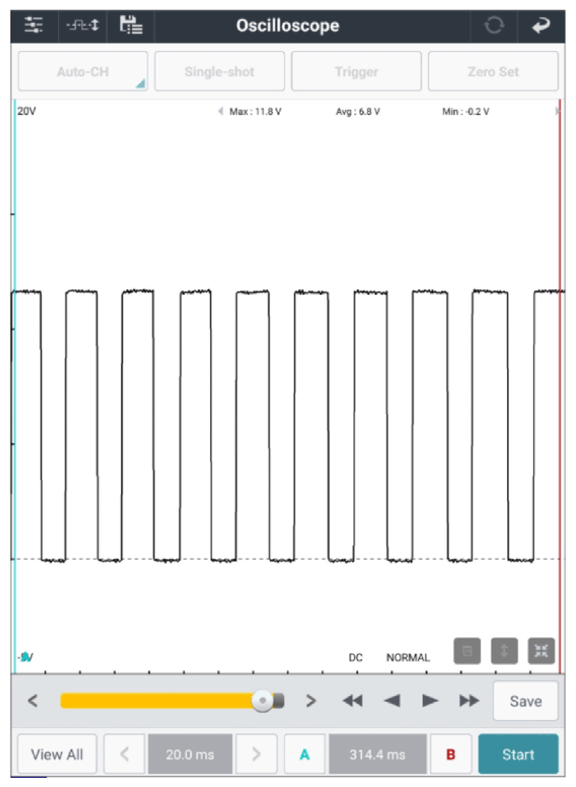

G13666579

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the WSS and go to "VERIFICATION OF REPAIR " procedure.
