ESC Variant Coding

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Variant Coding" in "Vehicle S/W management" with KDS.
 Fig.1 to 5

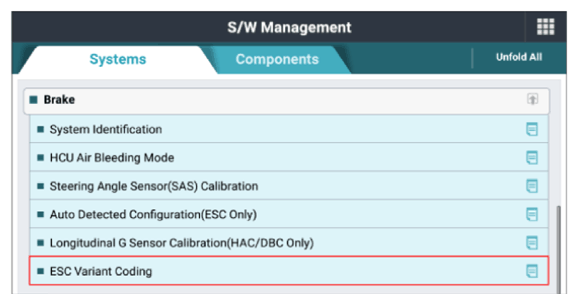

G13666535Courtesy of KIA MOTORS AMERICA, INC.

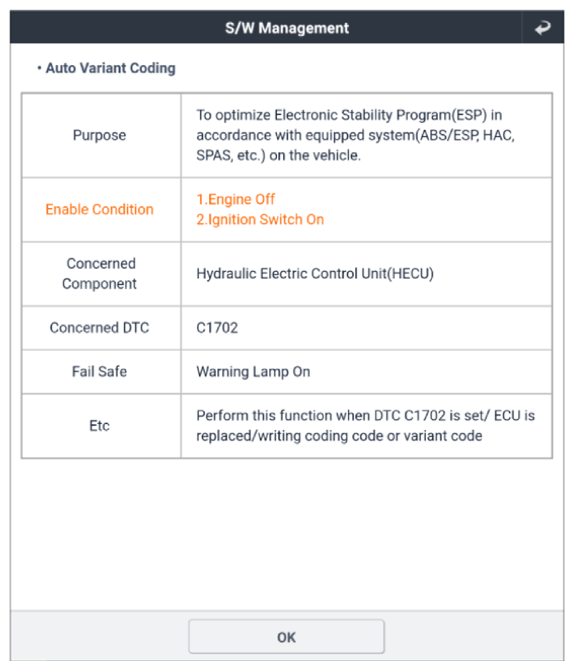

G13666536Courtesy of KIA MOTORS AMERICA, INC.

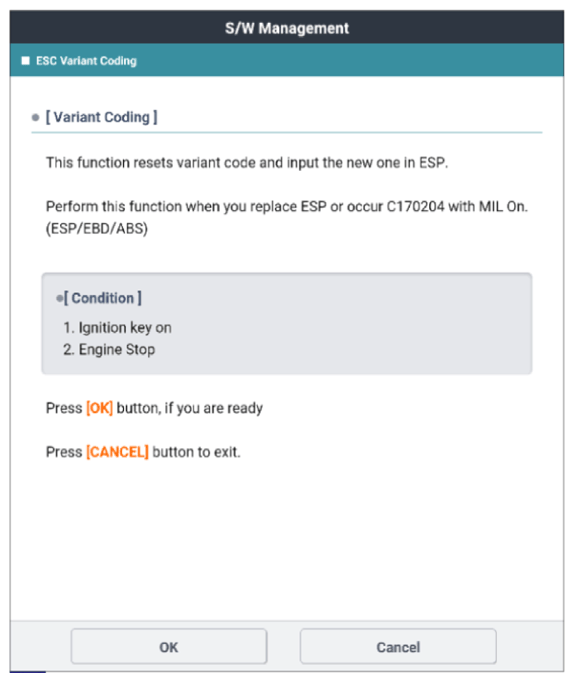

G13666537Courtesy of KIA MOTORS AMERICA, INC.

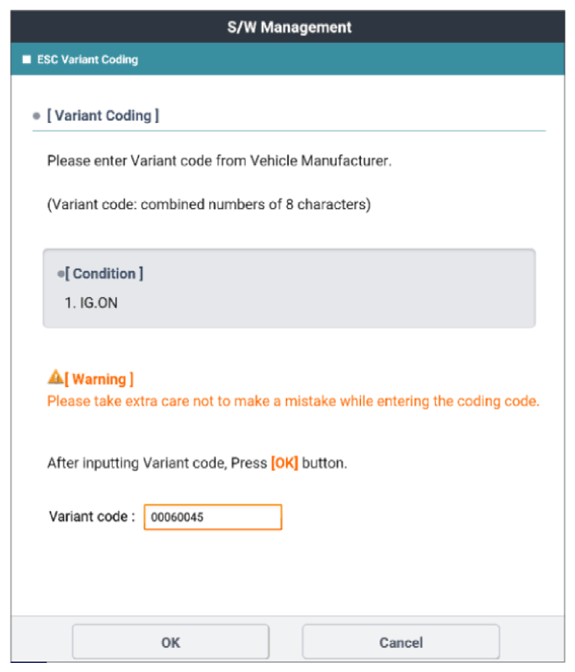

G13666538Courtesy of KIA MOTORS AMERICA, INC.
G13666539Courtesy of KIA MOTORS AMERICA, INC.
