Circuit Inspection

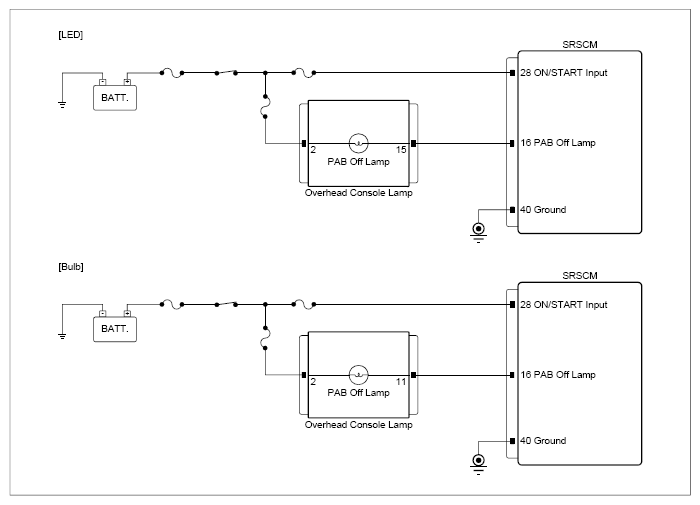

G14965803

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect A/C switch connector. Ignition "ON".	Overhead console lamp connector (LED)	15 (PAB off)	Chassis ground	-	B+
	Overhead console lamp connector (Bulb)	11 (PAB off)	Chassis ground	-	B+
Ignition "ON". PAB "ON". PAB OFF warning lamp "OFF".	SRSCM connector	16 (PAB off lamp)	Chassis ground	-	Over 1.9V
Ignition "ON". PAB "OFF". PAB OFF warning lamp "ON".	SRSCM connector	16 (PAB off lamp)	Chassis ground	-	Approx. below 1.9V

Good

Check telltale lamp and connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then Go to "Verification Of Repair " procedure.

No Good

Check airbag fuse, passenger compartment junction block, harness between junction block and SRSCM. Repair as necessary and Go to "Verification Of Repair " procedure.
