ACU Variant Coding

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. ACU variant coding (Off-line type on KDS-this can be used when not connecting to internet) in the "Vehicle S/W Management" with KDS.
  3. Monitor "Diagnostic Trouble Codes (DTC)" with KDS and verify that any DTC is stored.
 Fig.1 to 7
G14965792Courtesy of KIA MOTORS AMERICA, INC.

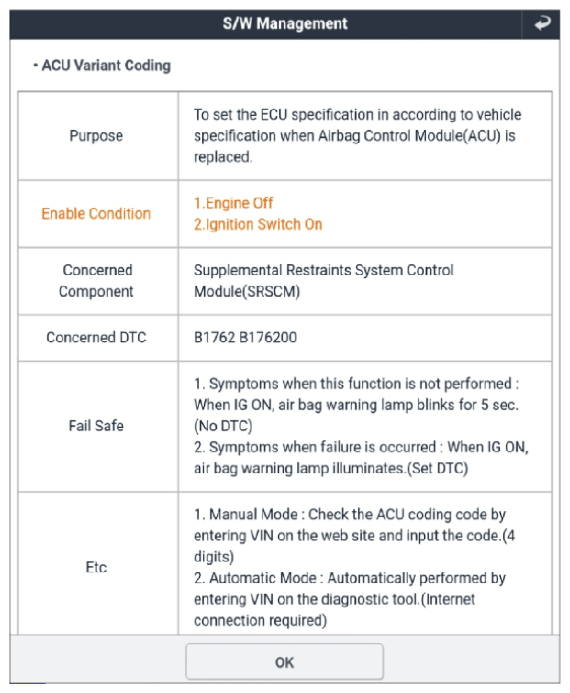

G14965793Courtesy of KIA MOTORS AMERICA, INC.

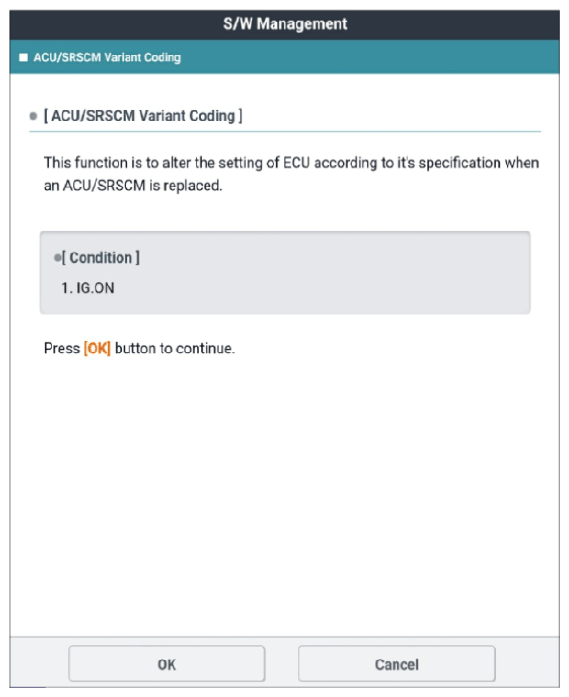

G14965794Courtesy of KIA MOTORS AMERICA, INC.

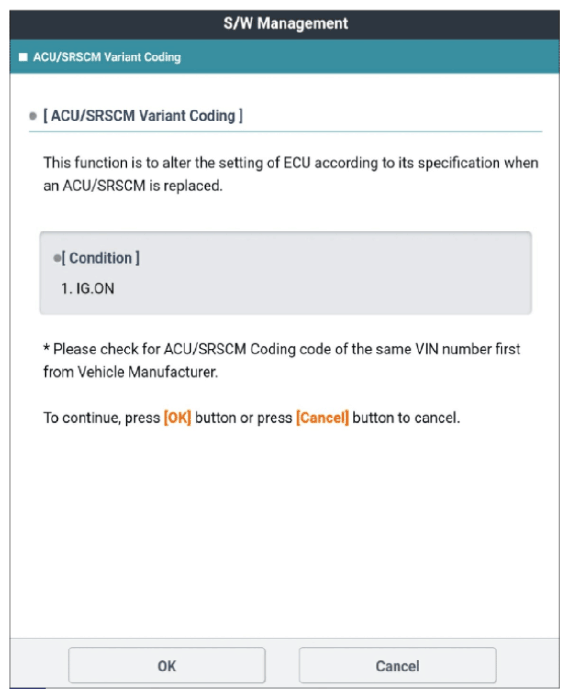

G14965795Courtesy of KIA MOTORS AMERICA, INC.

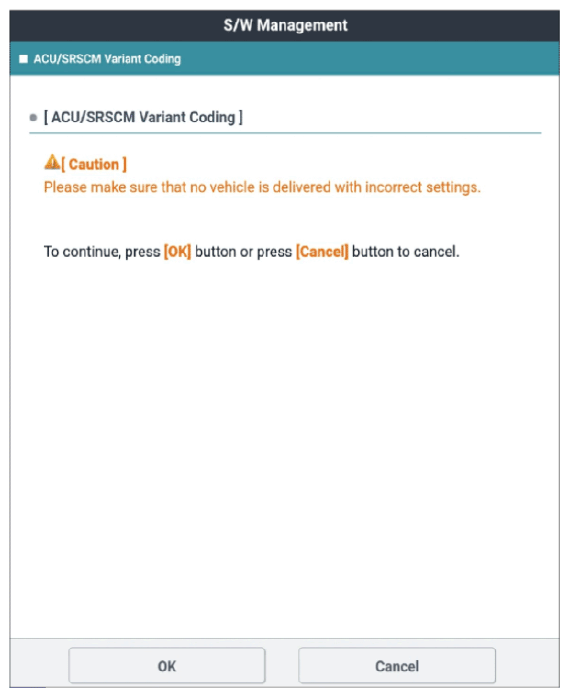

G14965796Courtesy of KIA MOTORS AMERICA, INC.

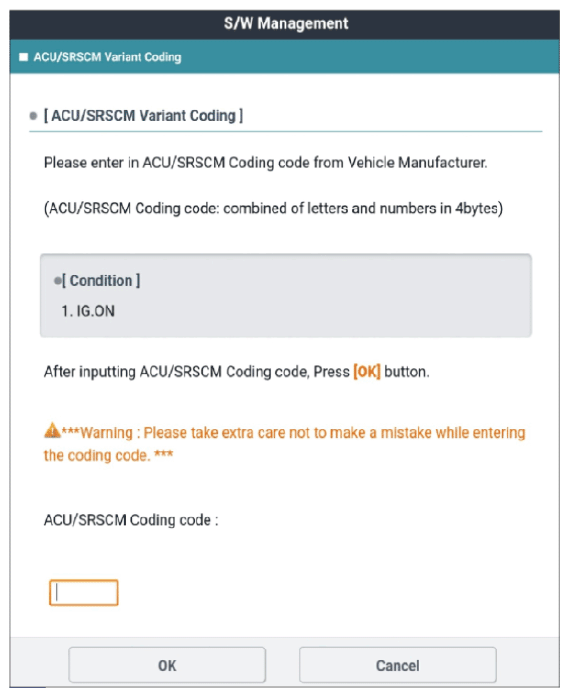

G14965797Courtesy of KIA MOTORS AMERICA, INC.

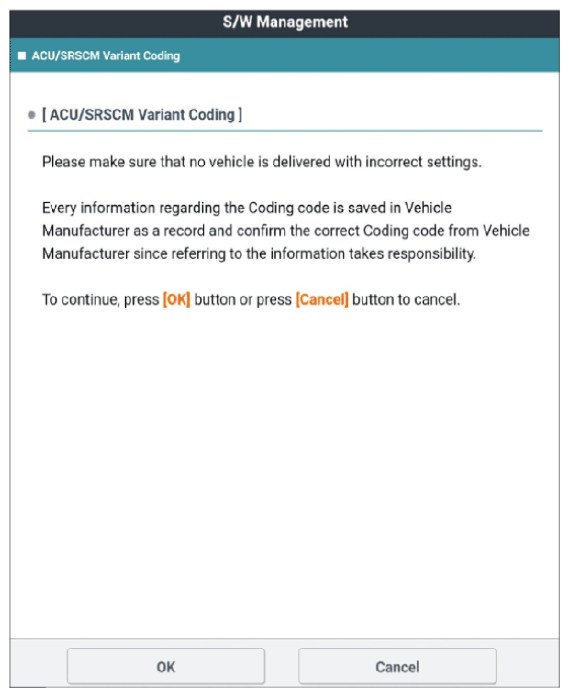

G14965798Courtesy of KIA MOTORS AMERICA, INC.
