ACU Variant Coding

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. ACU variant coding (Off-line type on KDS-this can be used when not connecting to internet) in the "Vehicle S/W Management" with KDS.
  3. Monitor "Diagnostic Trouble Codes (DTC)" with KDS and verify that any DTC is stored.
 Fig.1 to 7
G14965783Courtesy of KIA MOTORS AMERICA, INC.

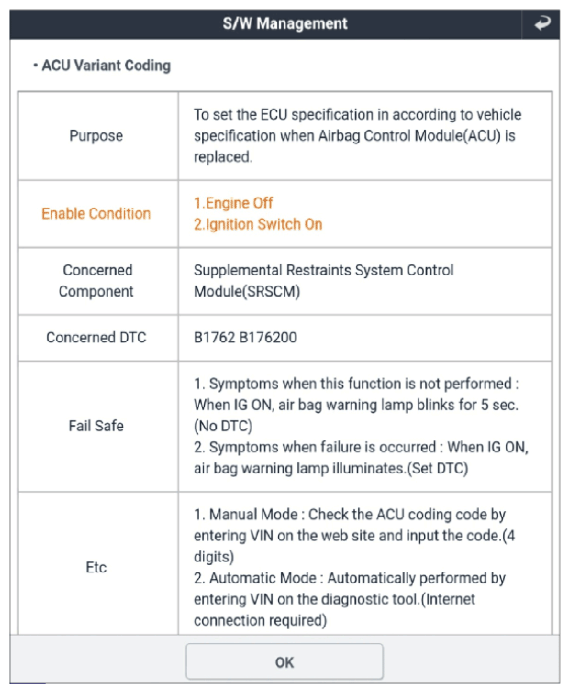

G14965784Courtesy of KIA MOTORS AMERICA, INC.

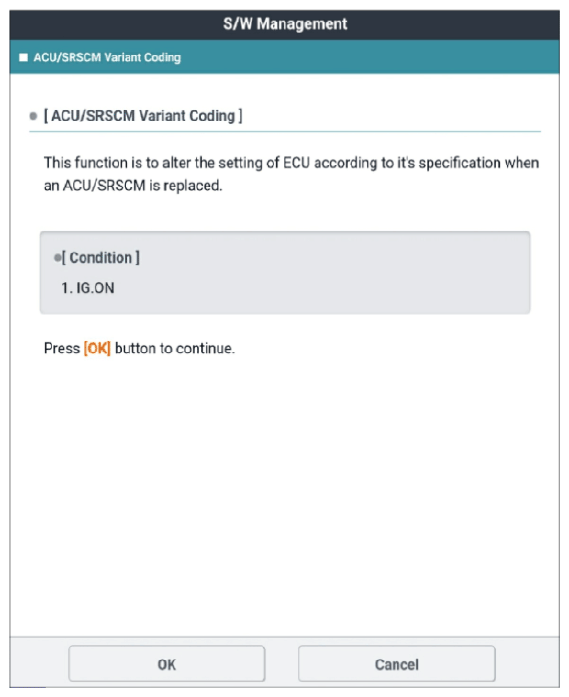

G14965785Courtesy of KIA MOTORS AMERICA, INC.

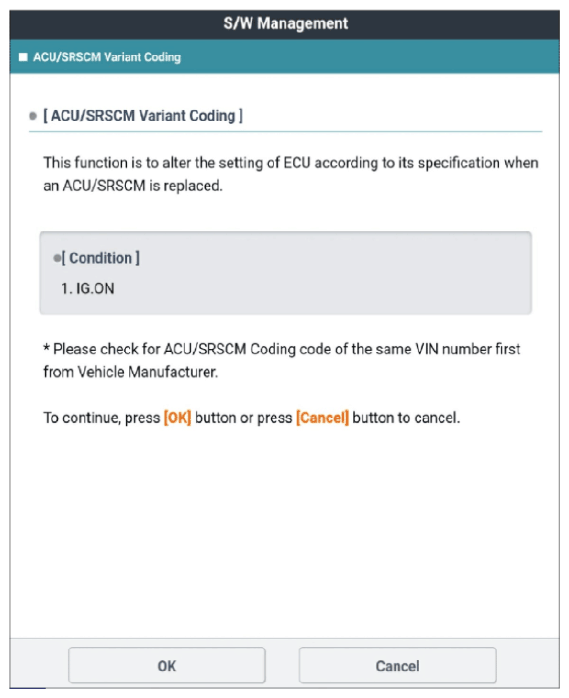

G14965786Courtesy of KIA MOTORS AMERICA, INC.

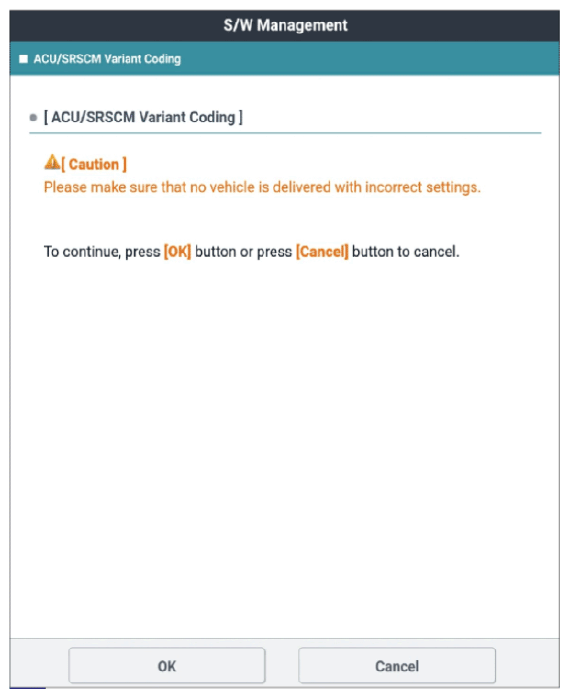

G14965787Courtesy of KIA MOTORS AMERICA, INC.

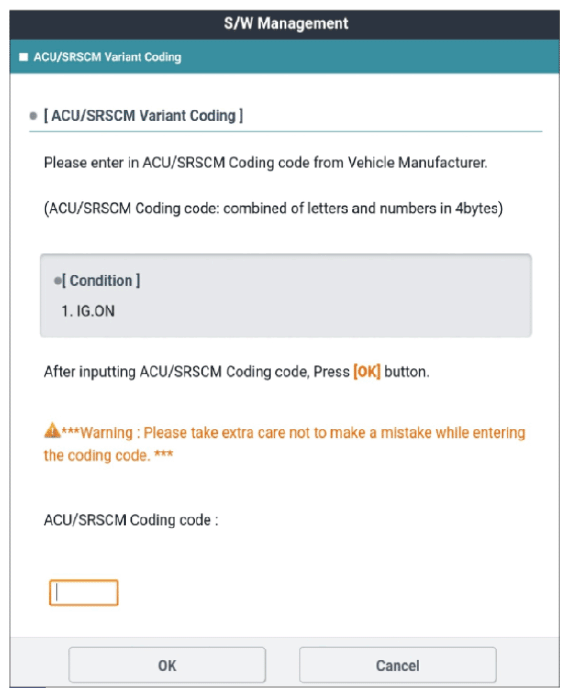

G14965788Courtesy of KIA MOTORS AMERICA, INC.

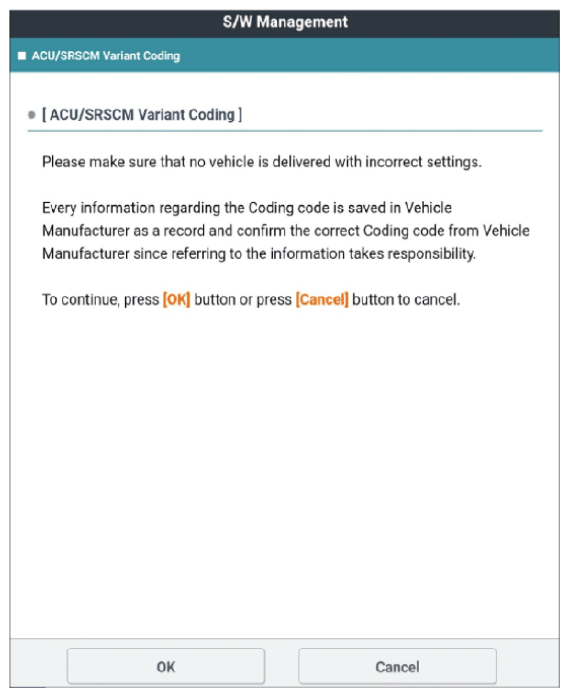

G14965789Courtesy of KIA MOTORS AMERICA, INC.
