Component Inspection
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

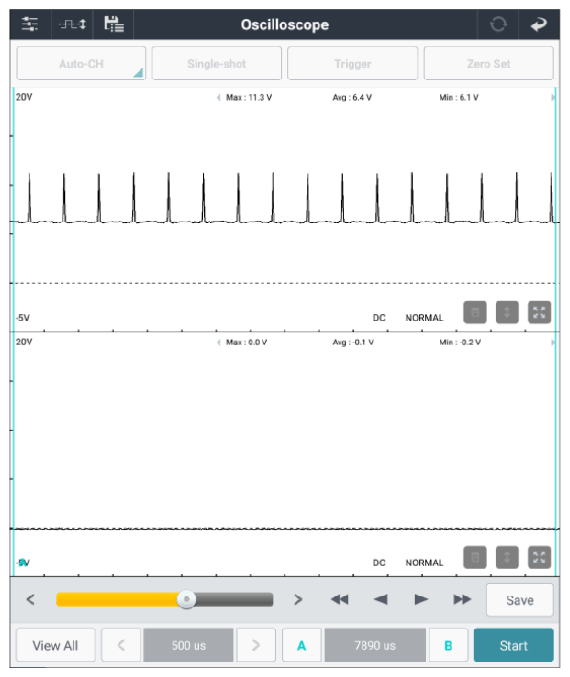

P-SIS connector | 1 (high) | Chassis ground | - | Fig.1 |
| P-SIS connector | 2 (low) | Chassis ground | - | ||
Good
- Carefully re-do this troubleshooting guide steps.
- If problem still occurs, replace SRSCM main harness and then Go to "Verification Of Repair " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If problem still occurs, replace P-SIS and then Go to "Verification Of Repair " procedure.
