ACU Variant Coding

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. ACU variant coding (Off-line type on KDS-this can be used when not connecting to internet) in the "Vehicle S/W Management" with KDS.
  3. Monitor "Diagnostic Trouble Codes (DTC)" with KDS and verify that any DTC is stored.

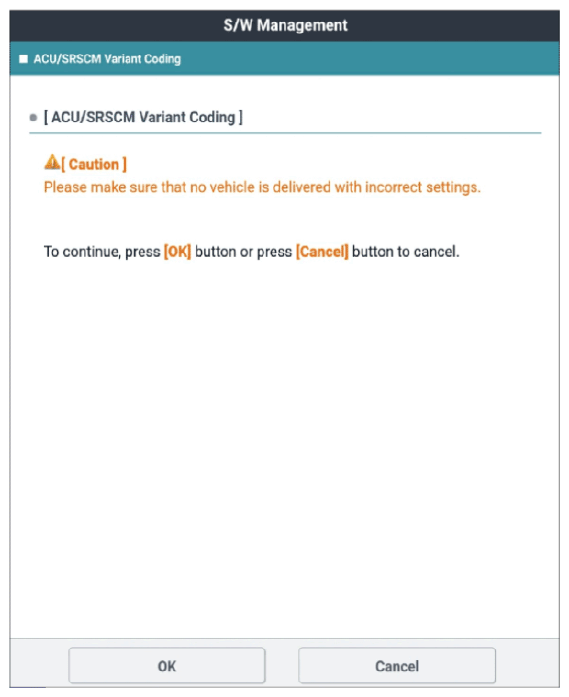

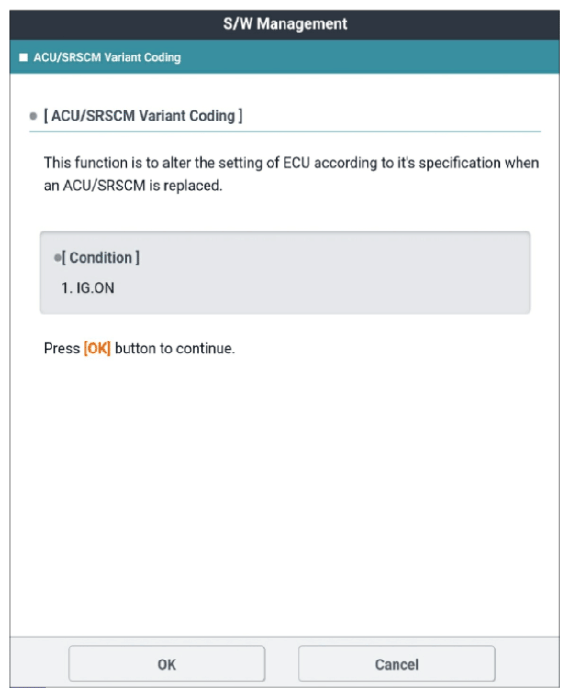

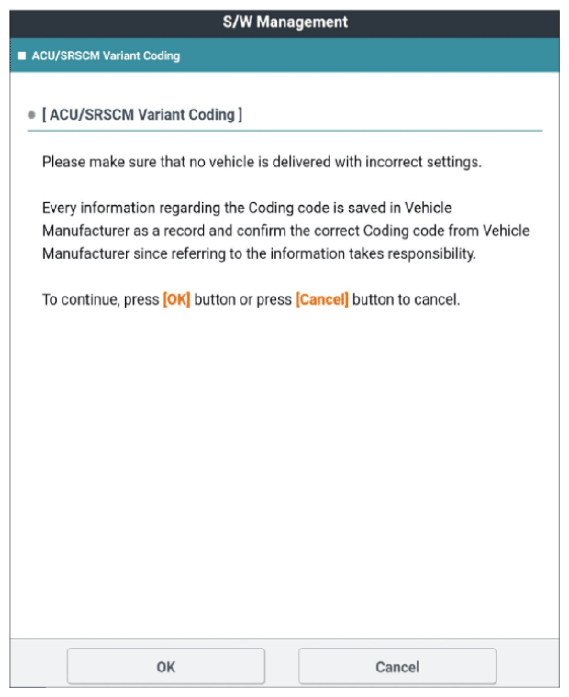

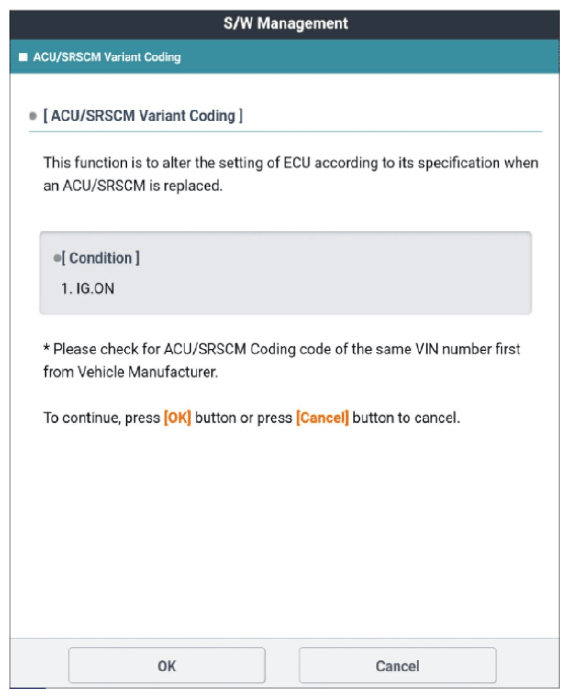

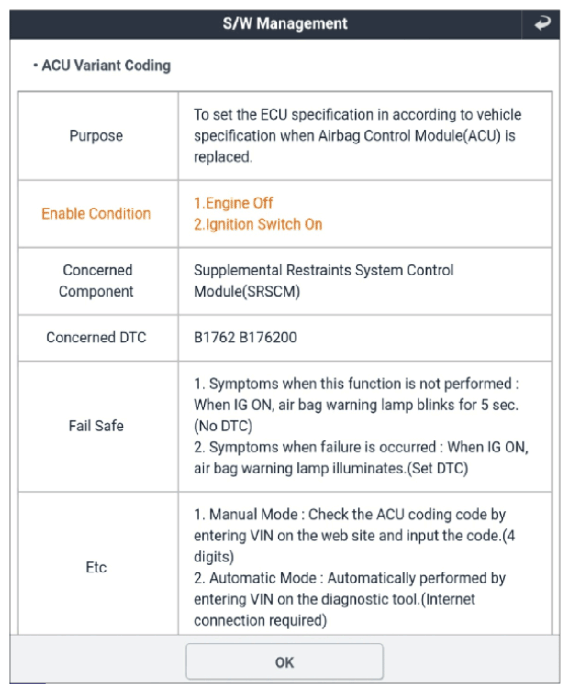

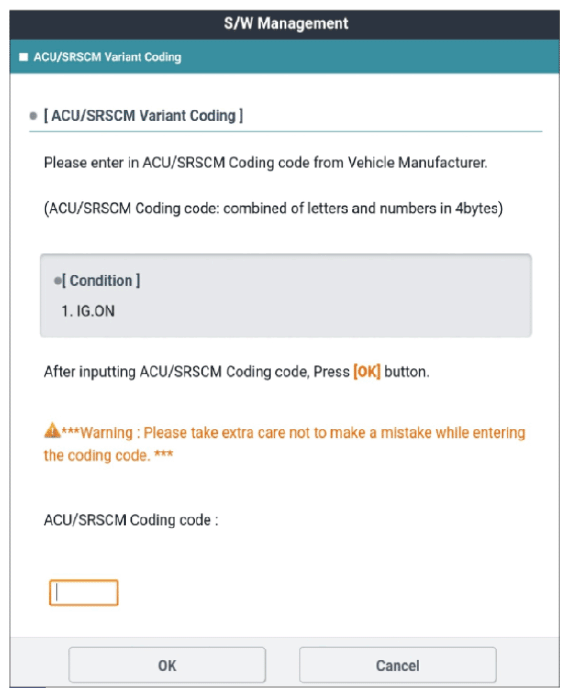

 Fig.1 to 7
G14965693Courtesy of KIA MOTORS AMERICA, INC.
