ACU Variant Coding

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. ACU variant coding (Off-line type on KDS-this can be used when not connecting to internet) in the "Vehicle S/W Management" with KDS.
  3. Monitor "Diagnostic Trouble Codes (DTC)" with KDS and verify that any DTC is stored.
 Fig.1 to 7
G14965684Courtesy of KIA MOTORS AMERICA, INC.

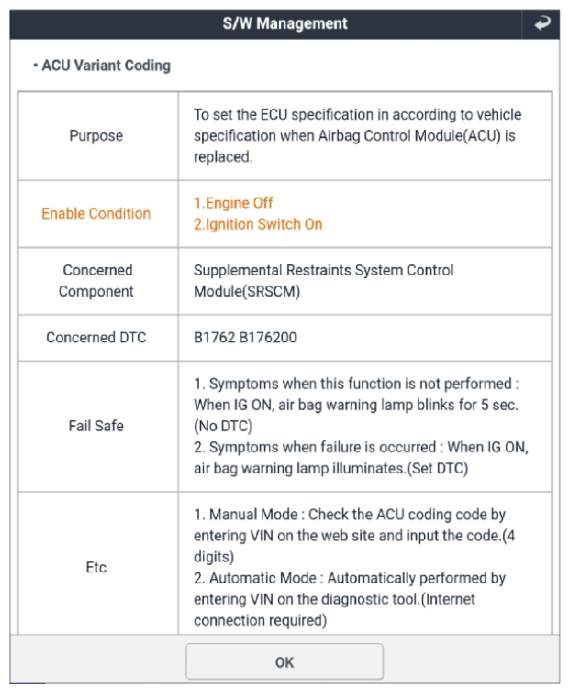

G14965685Courtesy of KIA MOTORS AMERICA, INC.

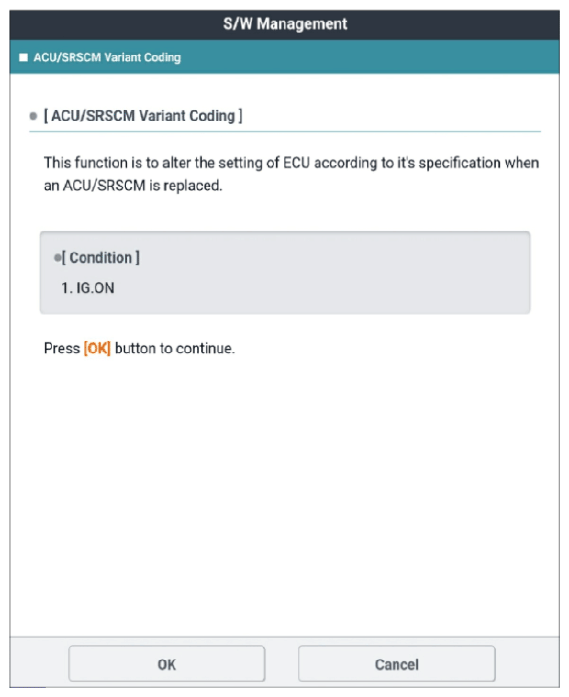

G14965686Courtesy of KIA MOTORS AMERICA, INC.

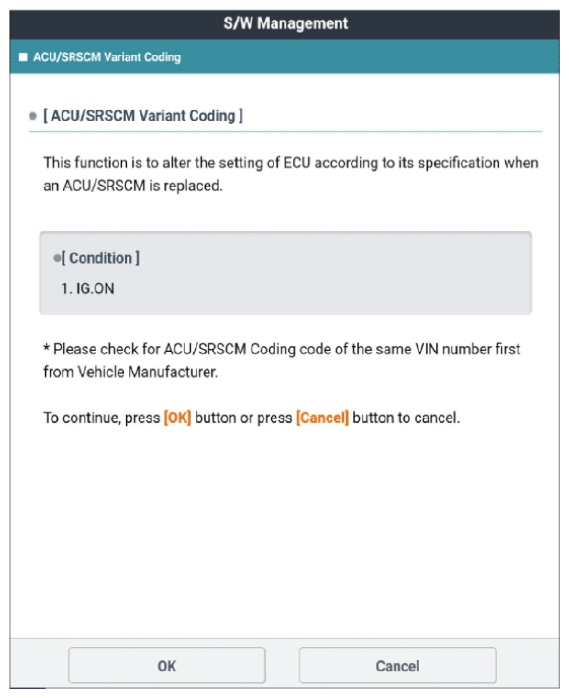

G14965687Courtesy of KIA MOTORS AMERICA, INC.

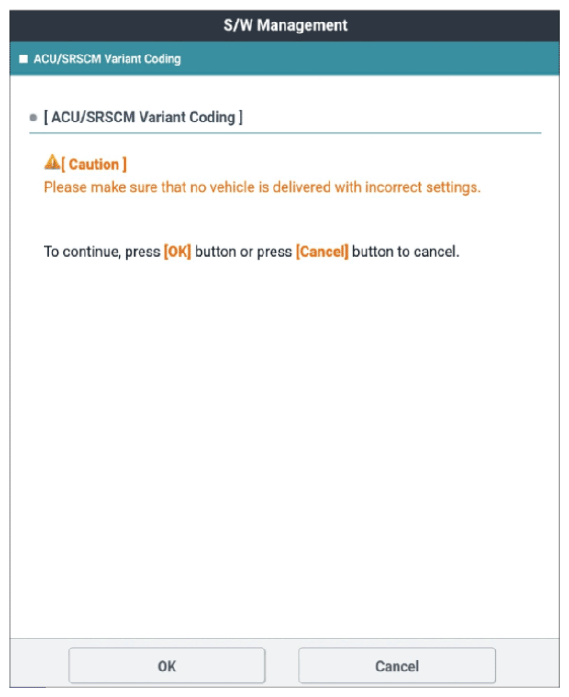

G14965688Courtesy of KIA MOTORS AMERICA, INC.

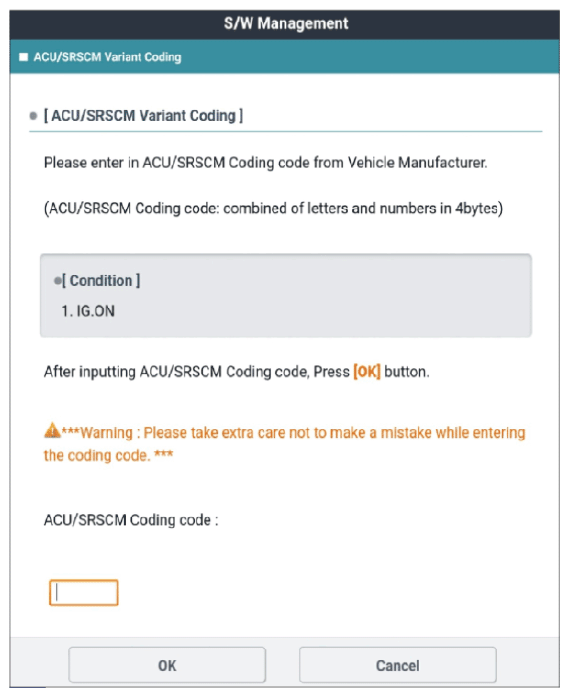

G14965689Courtesy of KIA MOTORS AMERICA, INC.

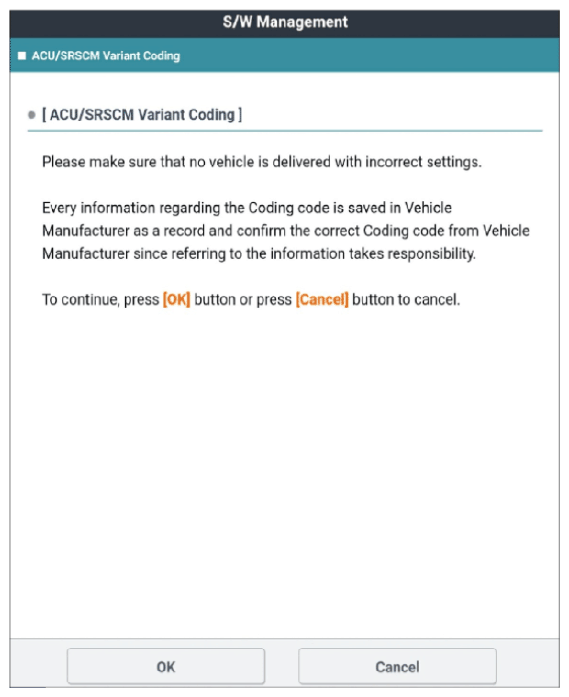

G14965690Courtesy of KIA MOTORS AMERICA, INC.
