Body Sensor Reset

Inspection Condition	Inspection Procedure	Reference

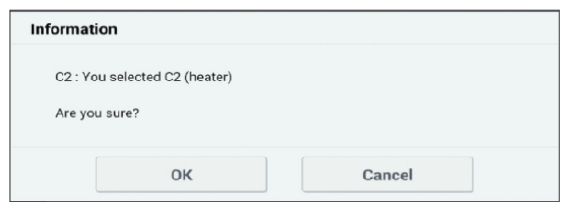

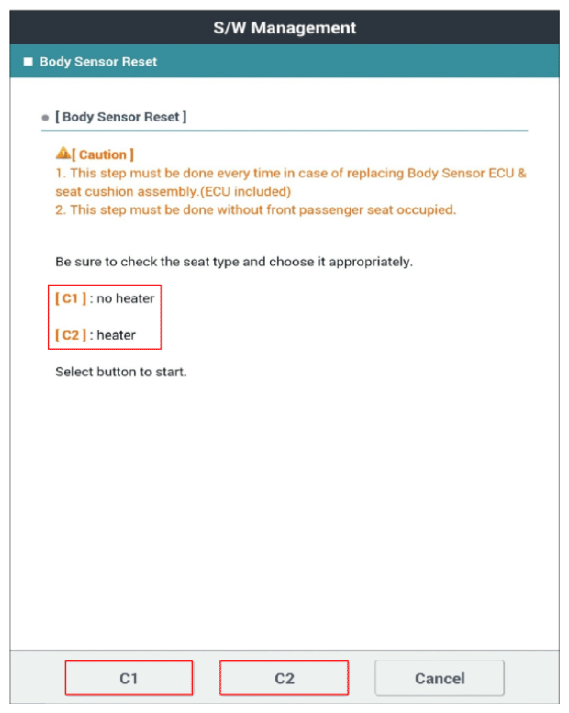

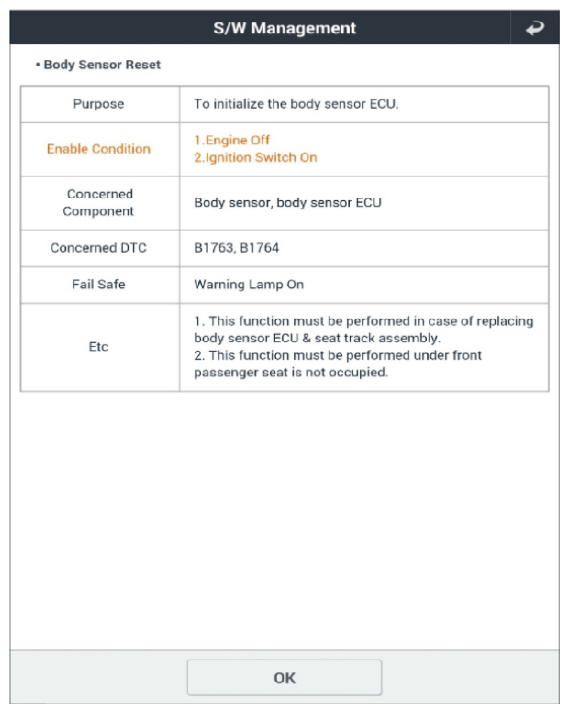

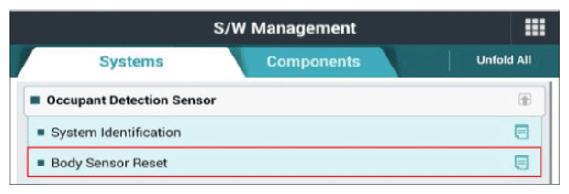

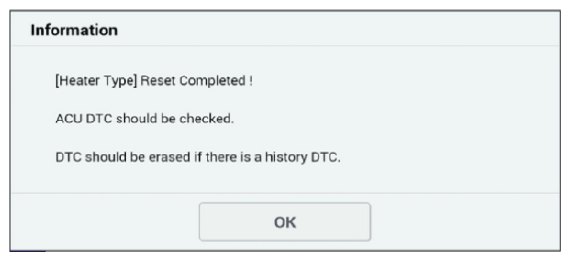

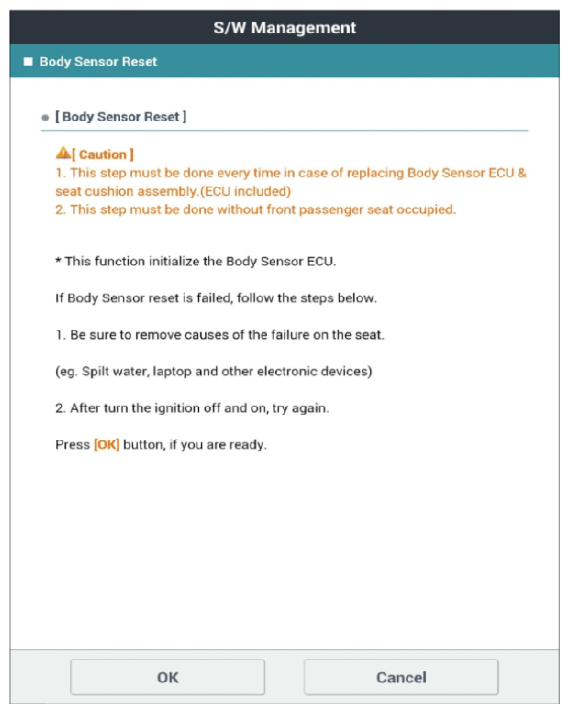

Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Perform "Body Sensor Reset" in "Vehicle S/W management".	Fig.1 to 6

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good

Check module connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then Go to "Verification Of Repair " procedure.

No Good
