Main Harness Circuit Inspection

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the auxiliary battery (-) terminal cable from the auxiliary battery, and wait at least for five minutes. Disconnect the electrical connector(s) from the concerned component.	DBPT connector	1 (high)	SRSCM connector	28 (high)	Approx. below 1Ω
	DBPT connector	2 (low)	SRSCM connector	27 (low)	Approx. below 1Ω
	DBPT connector	1 (high)	Chassis ground	-	∞ (infinity)Ω
	DBPT connector	2 (low)	Chassis ground	-	∞ (infinity)Ω

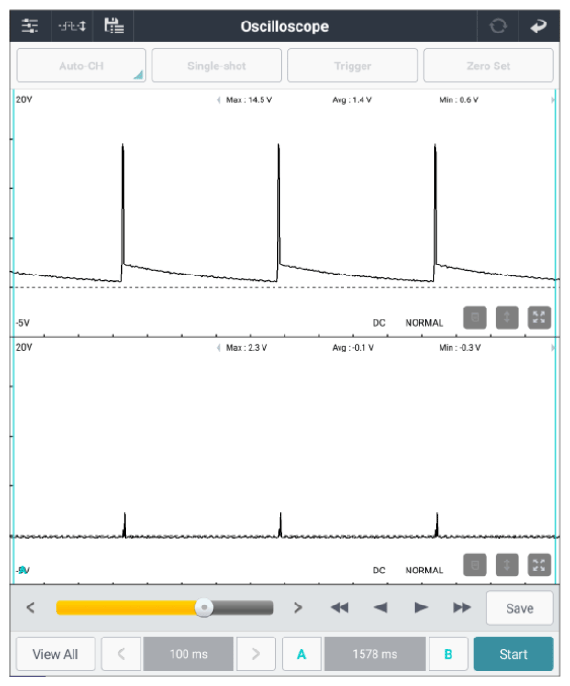

Connect the SRSCM main connector. Connect the auxiliary battery (-) terminal cable to the auxiliary battery. Ignition "ON".	DBPT connector	1 (high)	Chassis ground	-	Fig.1
	DBPT connector	2 (low)	Chassis ground	-	Fig.1

G14965356

Courtesy of KIA MOTORS AMERICA, INC.

Good

Carefully re-do this troubleshooting guide steps.
If problem still occurs, replace SRSCM and then Go to "Verification Of Repair " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If problem still occurs, replace SRSCM main harness and then Go to "Verification Of Repair " procedure.
