IN Cable Control Box (ICCB) Inspection
- Check the OBC charging.
- Check that the expansion line is not used when use with In Cable Control Box (ICCB) in the charging.
- Check the power point socket in In Cable Control Box (ICCB).
- Check the In Cable Control Box (ICCB) - Check on damage, corrosion and poorly.
- Check the In Cable Control Box (ICCB).
Good
- Check on a history of disabled charge. It would not be possible to charging system because of compatibility issues with the EVSE or charging condition.
- Go to "Charging Cable (charging connector) Inspection" procedure.
No Good
- Repair as necessary and then go to "Verification Of Repair " procedure.
| Charging Cable (charging connector) Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|

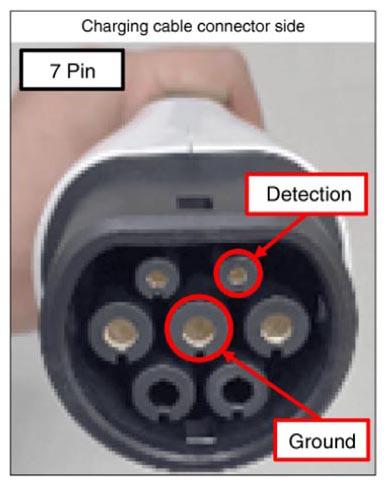

EVSE cable connector | Detection | EVSE cable connector | Ground | Approx. 150Ω |
Good
- Go to "CHARGING TERMINAL LOCK/UNLOCK INSPECTION " procedure.
No Good
- Repair or replace the EVSE charging cable (charging connector) and than go to "Verification Of Repair " procedure.
- If able to replace the charging cable, replace it and start charging.
- If unable to replace the charging cable, charge it with a different EVSE.
