Circuit Inspection

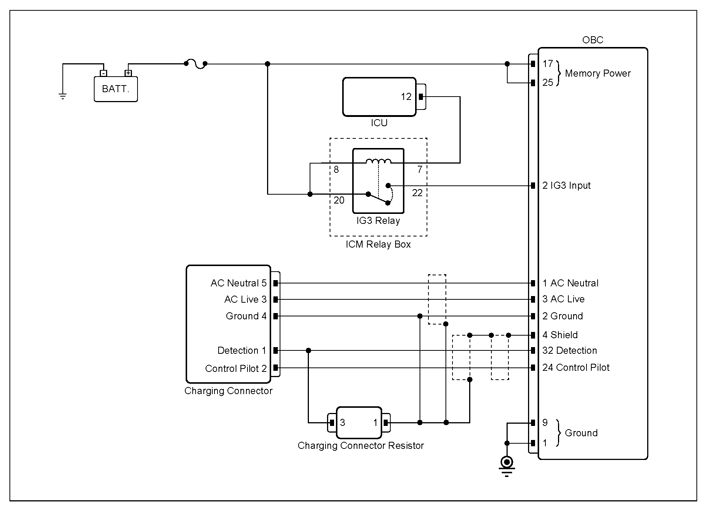

G14968079

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect main battery safety plug, and wait for 5 minutes. Check high voltage terminal is lower than 30V.	Charge connector	5 (ground)	Chassis ground	-	Approx. below 1Ω
	Charge connector	4 (detection)	Charge connector	5 (ground)	Approx. 2.7kΩ
Ignition "OFF". Disconnect main battery safety plug, and wait for 5 minutes. Check high voltage terminal is lower than 30V. Disconnect the OBC connector.	Charge connector	4 (detection)	OBC connector	32 (detection)	Approx. below 1Ω
	Charge connector	4 (detection)	Chassis ground	-	0V

Good

Fault is intermittent caused by poor contact in the part's and/or connector or was repaired and ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Go to "Verification Of Repair " procedure.

No Good

Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Repair or replace the wire as necessary and than Go to "Verification Of Repair " procedure.

CAUTION: ■ In case of replaced or repaired OBC, Replenish the cooling water and the electric water pump (EWP) is driven by KDS to circulate the cooling water.
