Monitor KDS Data

Inspection Condition	Inspection Procedure	Reference

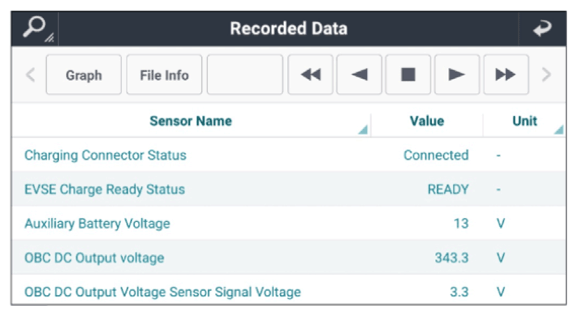

Ignition "ON".	Connect the charging connector to charge. Connect KDS to "Data Link Connector (DLC)". Monitor parameter in "Current Data" with KDS.	Fig.1

G14968065

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault is intermittent caused by poor contact in the part's and/or connector or was repaired and ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Go to "Verification Of Repair " procedure.

No Good

Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Repair or replace the wire as necessary and than Go to "Verification Of Repair " procedure.

CAUTION: ■ In case of replaced or repaired OBC, Replenish the cooling water and the electric water pump (EWP) is driven by KDS to circulate the cooling water.
