Monitor KDS Data

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect the charging connector to charge. Connect KDS to "Data Link Connector (DLC)". Monitor parameter in "Current Data" with KDS.	Fig.1

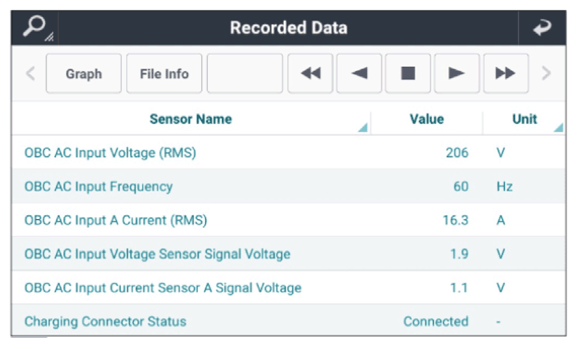

G14968035

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault is intermittent caused by poor contact in the part's and/or connector or was repaired and ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Check the EVSE and AC power-related parts of the charging station.

No Good

In order to confirm the condition of the OBC, connect another EVSE and re-try charging.
RE-try charging. If the DTC is present, replace the OBC and then Go to "Verification Of Repair " procedure.

CAUTION: ■ In case of replaced or repaired OBC, Replenish the cooling water and the electric water pump (EWP) is driven by KDS to circulate the cooling water.
