Monitor DTC Status

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect the charging connector to charge.
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

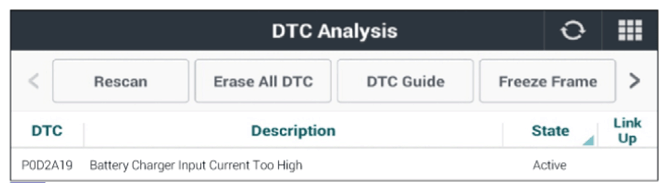

 Fig.1
G14968028Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

History/Pending Fault
