Component Inspection

OBC relay inspection (power relay assembly)
Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Remove safety plug, check if the high voltage is less than 30V. Disconnect auxiliary battery (-) cable. Remove the OBC relay from the PRA. Supply battery voltage to the coil terminals of the OBC relay.	OBC relay (component side)	Switch (+)	OBC relay (component side)	Switch (-)	Not applied 12V - ∞ (infinity)Ω/Applied 12V - Approx. below 1Ω
	OBC relay (component side)	Relay coil (+)	OBC relay (component side)	Relay coil (-)	Approx. 60Ω (20°C (68°F))

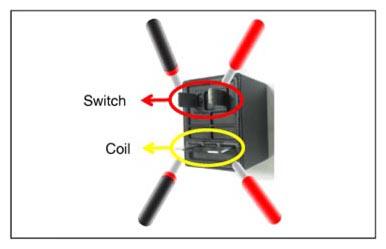

G14968003

Courtesy of KIA MOTORS AMERICA, INC.

Good

Repair or replace as necessary and then Go to "Verification Of Repair " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the OBC relay and then Go to "Verification Of Repair " procedure.
